Electronic/Electrical Parts and Controll Equipments

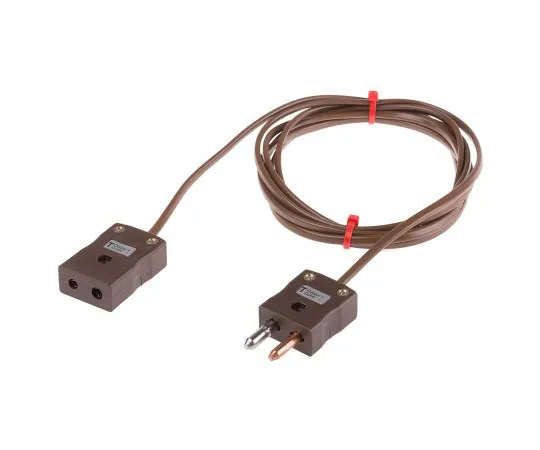

63-5083-19 Extension Cable Type T, -10 → +220 °C 2 Core PVC Sheath 2m 768-6648
Product Description
Product Model: 63-5083-19Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5083-19
Product Brand: RS PRO
Features
- Thermocouple Extensions Leads. A range of thermocouple extension leads in types K, J, T and N available with either a miniature or standard IEC connector. The thermocouple extension leads are available in 2 m, 5 m and 10 m lengths. Cable Construction:. PVC insulated cable IEC colour coded Laid flat, side by side & PVC sheathed Insulation rating -10 → 105 °C. Miniature connector (flat plug pins) or standard connector (solid, round plug pins) versions available Contacts are polarised to prevent incorrect connection
Spec
- Quantity：1piece
- Thermocouple Type : T
- Number of Cores : 2
- Length : 2m
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +220°C
- Core Strands : 7/0.2 mm
- Insulation Material : PVC
- Cable Shape : Multicore
- Number of Strands : 7
- Size of Strands : 0.2 mm
- Standards Met : IEC, RoHS Compliant
- CODE No.:768-6648
