Features

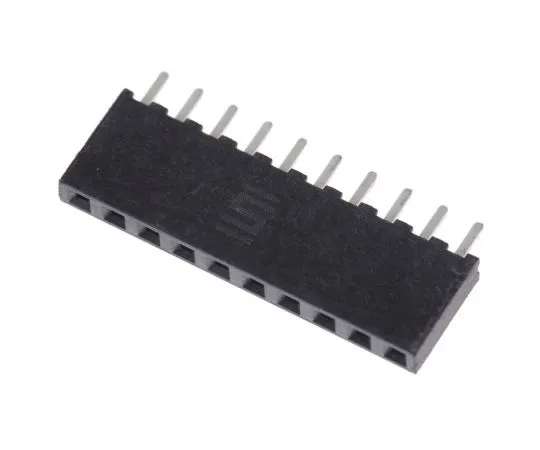

• For Mating TMM SMT Headers see stock number ; 481-4780 481-4780 typical. For Mating TMM Through Hole Headers see stock number ; 765-6212 765-6212 typical. SQT Series Rugged Sockets. These SQT Series of 2 mm pitch Board to Board Through-Hole Rugged Socket Strips from Samtec feature Tiger Buy 0.5 mm square Contacts with 0.25 μm Gold plating on the contact area and matte Tin plating on the 0.5 mm square PCB Tails. This range of SQT Series of 2 mm pitch Board-to-Board Through-Hole Rugged Socket Strips are available in single and double row with vertical or horizontal orientation formats. The above board height of the SQT Series of 2 mm pitch Board to Board Vertical Through-Hole Rugged Socket Strips is 6.35 mm. The post length of these SQT Series of 2 mm pitch Board to Board Through-Hole Rugged Socket Strips is 2.29 mm. Insulator Material: Black LCP Temperature Range: -55 → 125 °C Current Rating: 5.5 A at 20 °C. SQT-1xx-01-L- S : single row vertical SQT-1xx-01-L-x- RA : horizontal SQT-1xx-01-L- D : double row vertical
