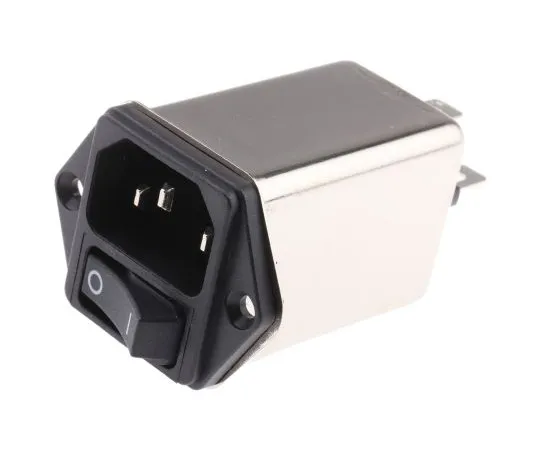

63-5081-69 Schaffner FN9264 Series 10A 250 V ac 400Hz Panel Mount EMI Filter, with Tab Terminals FN9264B-10-06
Product Description
Product Model: 63-5081-69Product Brand: Schaffner Featu […]
Contact Us
Product Details
Product Model: 63-5081-69
Product Brand: Schaffner
Features
- FN9264 - Switched IEC Filter (Medical). Combines IEC inlet and mains filter with superior filter attenuation in small form High quality 2-pole rocker switch Standard housing with mounting flanges and faston connectors Medical version according to IEC/EN60601-1
Spec
- Quantity：1piece
- Maximum Current Rating : 10A
- Maximum Voltage Rating : 250 V ac
- Mounting Type : Panel Mount
- Termination Style : Tab
- Series : FN9264
- Operating Frequency : 400Hz
- Length : 51.45mm
- Depth : 46mm
- Capacitance : 2.2 nF, 100 nF
- Dimensions : 51.45 x 46 x 35mm
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +85°C
- Resistance : 1MΩ
- CODE No.:767-2712
