Features

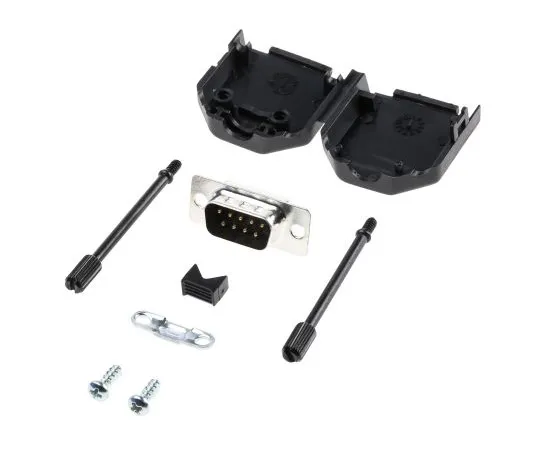

• Polyamide PA66-UL recognised material. Maximum cable diameter for the 9 way is 8 mm. Maximum cable diameter for the 15 and 25 way is 11.5 mm. MH Connectors MHDPPK D-Sub Connector Kits. The MHDPPK series of D-Sub connector kits come with 9, 15 or 25 pin connectors, in either male plug or female socket options. Please refer to the list below for more information. These D-Sub connector kits feature a black plastic clamshell casing. The plastic case quickly snaps together to lock, for quick and easy assembly. The D-Sub connector contacts are gold plated which also ensures a high quality connection. MHDPPK kits work with cables with a diameter of up to 9 mm. The cable clamp that comes with the kit is secured with two screws. This provides strain relief to the cable to ensure reliability and a longer lifetime. Top cable entry (90°) Compatible cable diameter up to 9mm Black plastic housing Effortless QuickLock system Gold-plated contacts. D-Sub Connector Info: Voltage rating: 250V Current rating: 3A Contact resistance: 25mA (max) Insulation resistance: 1000 MΩ Operating temperature: -55 to +105 °C Each Kit Contains: 2 x backshell halves 2 x 4-40 jack screws 1 x plastic strain relief 1 x metal strain relief clamp (with screws) 1 x D-Sub connector with solder buckets. Versions Available: ; 765-9551 765-9551 - 9-pin Plug ; 765-9555 765-9555 - 9-pin Socket ; 765-9564 765-9564 - 15-pin Plug ; 765-9567 765-9567 - 15-pin Socket ; 765-9561 765-9561 - 25-pin Plug ; 765-9570 765-9570 - 25-pin Socket. Note: Maximum cable diameter for the 9 way is 8 mm. Maximum cable diameter for the 15 and 25 way is 11.5 mm.
