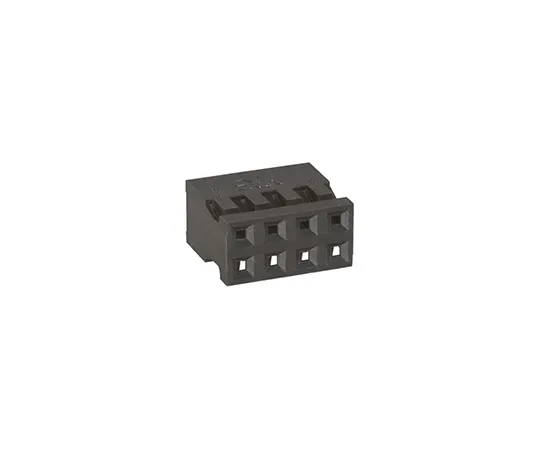

63-5079-06 Hirose A3B Female Connector Housing, 2mm Pitch, 8 Way, 2 Row A3B-8D-2C
Product Description
Product Model: 63-5079-06Product Brand: Hirose Features […]
Contact Us
Product Details
Product Model: 63-5079-06
Product Brand: Hirose
Features
- UL94V-0. Miniature Straight Crimp Socket Connectors. These Hirose miniature straight receptacle crimp connectors are light weight, high density connectors in PBT material, accepting socket contacts only. For suitable contacts see stock numbers ; 779-2908 779-2908 , ; 779-2901 779-2901 and ; 779-2936 779-2936. Features and Benefits. Current rating 1A Voltage rating 200 Vac Operating temperature range -55 to +85° C. Applications:. VTR Vehicle telephones Carious electronic equipment
Spec
- Quantity：1bag(10pieces)
- Number of Contacts : 8
- Number of Rows : 2
- Pitch : 2mm
- G***er : Female
- Mounting Type : Cable Mount
- Series : A3B
- For Use With : A3 Series
- Body Orientation : Straight
- Length : 8mm
- Width : 4mm
- Depth : 7mm
- Housing Material : PBT
- CODE No.:764-4705
