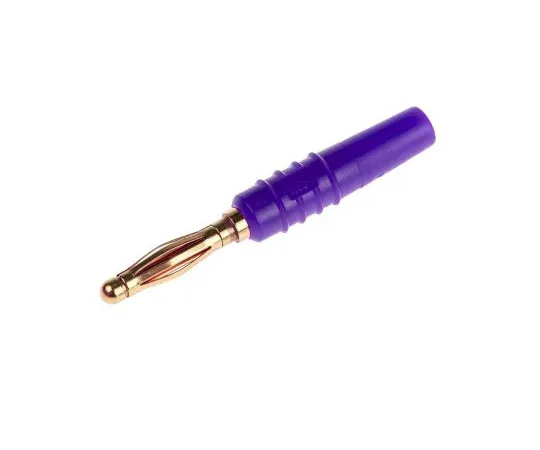

63-5077-17 Violet Plug Banana Plug Solder 30 V ac, 60 V dc 22.2618-26
model:
63-5077-17
brand:
Multi Contact
Product Description
Product Model: 63-5077-17Product Brand: Multi Contact F […]
Contact Us
Product Details
Product Model: 63-5077-17
Product Brand: Multi Contact
Features
- Suitable for *** with the LB-I2R range of panel mount sockets see < 763-2926') 763-2926/ and range. Multi-Contact SLS205-L Series Multilam Inline 2 mm Plugs. Multi-Contact SLS205-L series multilam inline 2 mm plug connectors are for the self assembly of test leads to your own specification and test lead application. These 2mm diameter gold plated inline plugs have a spring loaded miltilam contact with solder bucket connection and the press fit rigid insulator body allows for a maximum cable diameter of 2.1 mm, suitable for many applications that call for a 2 mm diameter multilam plug connector. The test plug insulator is assembled over an associated cable prior to soldering into the solder bucket, it is then a press fit over the 2 mm miltilam plug tang to finalise and complete the SLS205-L inline plug connector assembly. 2mm plug with spring loaded Multilam™ Gold plated Solder connection for lead Accepts 0.5mm 2 lead up to maximum diameter of 2.1mm Rated up to 30Vac / 60Vdc at 10A Assembly instructions included In-line lead connection Compatible with LB-I2R 2mm socket
Spec
- Quantity:1bag(5pieces)
- Colour : Violet
- G***er : Plug
- Termination Method : Solder
- Voltage Rating : 30 V ac, 60 V dc
- Current Rating : 10A
- Contact Plating : Gold
- Spring Contact : Yes
- Length : 27mm
- CODE No.:763-2916
