Features

• 7.5 mm or 10 mm square and round ABS actuator buttons and POM mounting frames (compatible only with TP2 and TPL2 switches) are available in a variety of colors to suit your needs. See the accessories table for details.
• Temporary states are written in parentheses, such as on - (on).

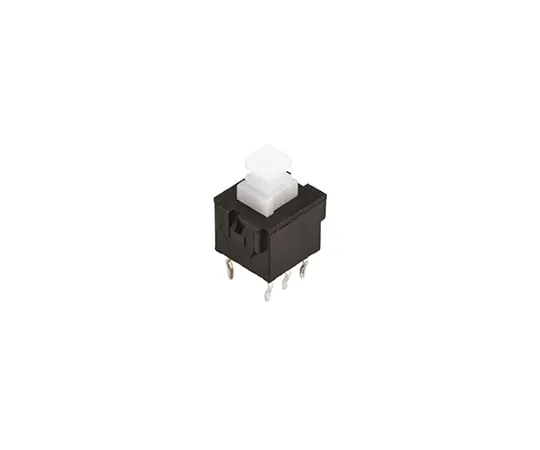

• Fujisoku LED illuminated and non-illuminated push-button switches – TP and TPL series
• The Fujisoku TP and TPL series are LED-illuminated and non-illuminated sub-miniature push-button switches with momentum (ON) or alternate on-on switching actions.
• There are two types of TP and TPL series miniature switches.
• The TP1 and TPL1 pushbutton switches are non-illuminated switches designed not to be ***d in accessory buttons or frames.
• TP2 and TPL2 switches can be illuminated or non-illuminated. Select the shape, size and color of the actuator button and bezel (mounting frame) according to the application.
• The TP and TPL series push-button switches are both epoxy sealed and flux-resistant and offer high reliability when ***d with clip-type contacts.
• A molded board terminal is provided to secure the switch so that it does not accidentally fall off the board when soldering is applied, and the terminal spacing conforms to the standard board grid spacing.
• LED illuminated or non-illuminated, panel or board mounting options, alternate (push-to-lock) or momentary switching action selectable Non-short contact Red, green or yellow LED DPDT silver or gold plated contact Maximum switch rating: 0.1 A @ 30 V dc, gold contact minimum: 1 μA Maximum contact resistance: 50 MΩ (silver contact), 100 MΩ (gold contact) Insulation resistance: 500 V ac (1 minute) Minimum insulation resistance: 100 MΩ Electrical life: 10,000 operations Stroke: 1.5 mm (full), 1.0 mm (locked) Operating temperature range: -10→+70°C
