Features

• UL, CSA, PSE - Single pole and 2 pole toggle switches only, see table above for details.
• Hardware for fixing panel.
• The temporary states of the 2-pole and 3-pole momentary switches are shown in parentheses as (on) - off - (on).
• For a suitable mating connector to mate with a 0.250 inch tabbed toggle switch, see Part No.; Refer to 669-2374 669-2374.
• Part number; The 762-5384 762-5384 has solder terminals on the side of the switch body, not on the underside of the switch body.
• Fujisocto Glu Switch - ET Series

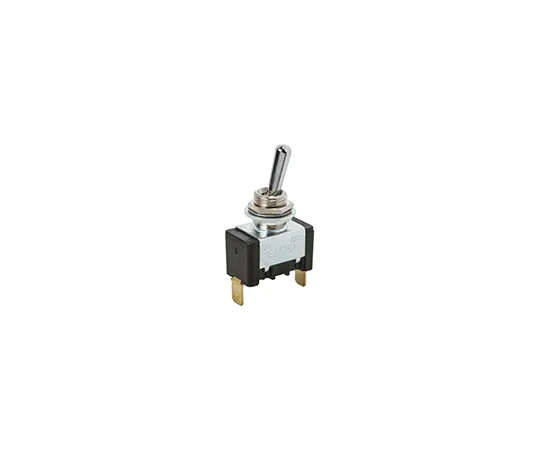

• The Fujisoku ET Series toggle switches are available in single pole, 2 pole, 3 pole, and 4 pole contact configurations, alternate or momentary switching functions, 0.250 inch tabs, and screw or solder terminal types.
• The EL toggle switch ***s self-extinguishing UL94V-0 phenol resin as the body material, has excellent arc and tracking resistance, and is equipped with a contact mechanism that guarantees high reliability with reduced chattering and bounce times.
• The ET Series toggle switches have a panel mount design and the switch body is mounted on a 12.3 mm diameter cutout (without locking rings). 12.5 mm if lock rings are ***d) and the maximum panel thickness is 5.5 mm.
• The ET Toggle Switch Series includes a variety of toggle switches that can be ***d in many applications requiring high power switching from 3 A to 30 A.
• Compatible accessories for this series include grey, red and black waterproof boots and on/off escutcheon plates. Part No.; 222-948 222-948,; 222-932 222-932,; 222-954 222-954,; 222-910 222-910 and; Refer to 222-926 222-926.
• High rated current -3 A, up to 30 A Solder, screw or 0.250 inch tab terminal Alternate or momentary switching (momentary switching only 2 pole and 3 pole toggle switches) Maximum contact resistance of 30 MΩ for 3 A rated switch (Part number; 398-225 398-225,; 762-5384 762-5384 and; 762-5388 762-5388) Maximum contact resistance of 20 MΩ for all other ET toggle switches Insulation strength: 1500 V ac, minimum 1 minute insulation resistance: 100 MΩ
