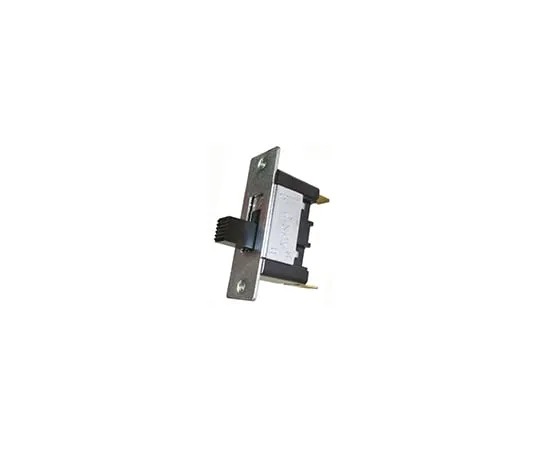

63-5075-57 Slide Switch Single Pole Double Throw (SPDT) 15 A ES115D12-Z
model:
63-5075-57
brand:
Copal Electronics
Product Description
Product Model: 63-5075-57Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-5075-57
Product Brand: Copal Electronics
Features
- UL (Part No.; 762-5687 762-5687 only) PSE (Part No.; 762-5375 762-5375 only)
- Part number; 762-5369 762-5369,; 762-5366 762-5366,; 762-5372 762-5372 and; The 762-5381 762-5381 has 6.3 mm Faston/Quick Connect type terminals. The part number for the optimum connector to be engaged; Refer to 669-2374 669-2374.
- Fujisoku Miniature Slide Switch - ES and S Series
- Fujisok's miniature ES and S series slide switches can be ***d in many applications requiring high power switching.
- Panel mount type with miniature body and SPDT or DPDT contact configuration. Other options include 6.3 mm Faston/Quick Connect tab terminals, solder tag terminals and slide switches with screw terminals.
- Minimum insulation resistance: 100 MΩ Insulation resistance: 1,500 Vac, 1 minute
Spec
- Number of Pieces: 1
- Contact Configuration: Single Pole Double Throw (SPDT)
- Mounting Type: Panel Mount
- Switch Operation: Latch
- Contact current rating: 15 A
- Terminal Type: Solder Lug
- Actuator Type: Top
- Contact resistance: 20 mΩ
- Mechanical Life: 20,000 Cycles
- RoHS Compliance Status: Compliance
- Securities Code: 762-5362
