Features

• UL, CSA
• Hardware for fixing panel.
• The momentary switch's temporary state is shown in parentheses, such as (on) - off - (on).
• Fuji Socto Glu Switch -8 Series

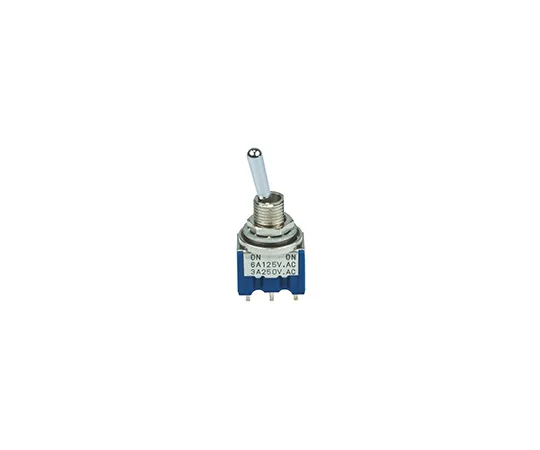

• The Fujisoku 8 Series toggle switches are available in single or double pole contact configurations, momentary or alternate switching functions, and substrate or solder terminals.
• This product line consists of a wide variety of toggle switches with a wide variety of toggle switch lever types to choose from.
• Product Series: 8A: Standard Toggle Type, 8B: Mustang Toggle Type - for excessive actuator actuation force and limited space, 8C: Flat Toggle Type - non-rotating and with a nice looking dress nut, 8D: Long Toggle Type - 21.3 mm in length, 8E: Lever Lock Toggle Type - Locks in place to prevent malfunction, 8F: Drip-proof Toggle Type - O-ring seals are inserted to secure the switch and designed for panel seals suitable for wet and dusty environments, 8J: Short Toggle - 6.8 mm in length, 8S: Toggle switch with black plastic color chip approximately 5 mm in length on top of the bar lever.
• Each of the 8 Series toggle switches has an epoxy sealing structure, UL 94V-0 self-dissipation, and more than 4 mm of terminal-to-ground insulation.
• This durable Fujisok 8 Series toggle switch is designed for panel mounting and is suitable for panel cutouts of 2.5 mm to 6.9 mm thick panels. Refer to the table below for detailed dimensions of panel cropping and panel thickness.
• Selectable toggle lever type solder or substrate terminal Silver or gold plated contact Maximum switch rating for silver contact: 6 A @ 125 V ac, 3 A @ 250 V ac Maximum switch rating for gold contact: 25 mA @ 20 V dc Maximum contact resistance: 10 MΩ (silver contact), 20 MΩ (gold contact) Insulation strength: 1500 V ac, 1 minute Insulation resistance: 1000 MΩ or more Electrical life: -25,000 times (momentary toggle switch), 50,000 times (alternate toggle switch) Self-extinguishing, UL94V-0 compliant Operating temperature range: -20→+85°C
