Electronic/Electrical Parts and Controll Equipments

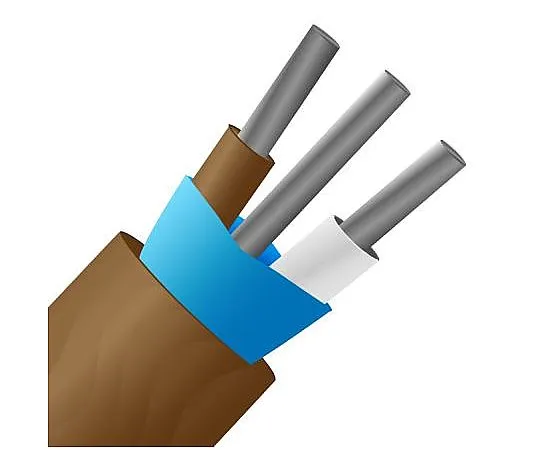

63-5073-69 Thermocouple & Extension Wire Type T, -10 → +105 °C 2 Core Screened PVC Sheath 25m 762-1140
Product Description
Product Model: 63-5073-69Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5073-69
Product Brand: RS PRO
Features
- BS4937 Part 30 1993 which conforms to IEC 584-3. PVC Insulated Extension Cable. Features and Benefits. PVC insulated ; colour coded to BS4937 Pt30 Screened or unscreened options Very flexible Twisted cores ; screened construction for reduced electrical noise Conductors PVC insulated and twisted together, aluminium Mylar® tape screen ; drain wire, overall PVC sheath General purpose cable both waterproof and flexible Thermocouple extension types for K, J, T ; compensating type VX (KCB) for type K thermocouple Stranded 7/0.2mm conductors Available in 25 ; 100 metre lengths Tolerance Class 2 Insulation rating -10°C to 105°C Colour code (cores ; jacket) to IEC-584-3
Spec
- Quantity：1roll(25m)
- Thermocouple Type : T
- Number of Cores : 2
- Length : 25m
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +105°C
- Screened/Unscreened : Screened
- Core Strands : 7/0.2 mm
- Insulation Material : PVC
- Cable Shape : Twisted Pair
- Number of Strands : 7
- Size of Strands : 0.2 mm
- Standards Met : BS 4937 Part 30 1993 IEC 584-3, RoHS Compliant
- CODE No.:762-1140
