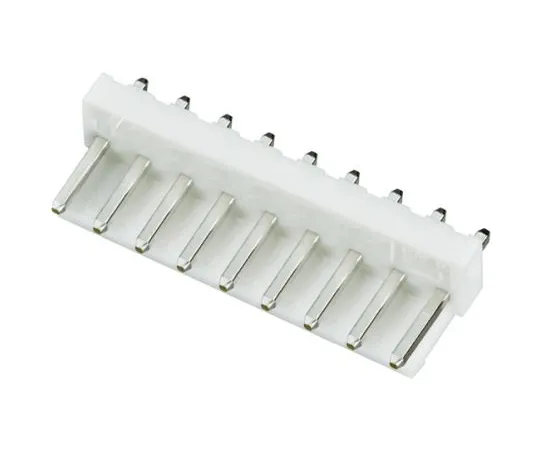

63-5073-04 JST VH, 9 Way, 1 Row, Top Entry PCB Header B9P-VH(LF)(SN)
Product Description
Product Model: 63-5073-04Product Brand: JST Features Ma […]
Contact Us
Product Details
Product Model: 63-5073-04
Product Brand: JST
Features
- Mates with VH Series Crimp Housings, see stock number ; 762-0746 762-0746 typical. VH Series Headers. These VH Series of Wire to Board, 3.96 mm pitch, Through Hole Connectors from JST are suitable for *** in a signal, power supply or output circuit applications. The compact size and large capacity coupled with secure locking contact and mounting are the special features of these VH Series of Wire to Board, 3.96 mm pitch, Through Hole Connectors. The Headers of the VH Series are suitable for 1.6mm thick PCBs. The above board heights of the mated VH Series connectors are 16.5 mm for the Top Entry and 10.5 mm for the Side Entry type. Temperature range: -25 → 85 °C Header material: PA66 UL94V-0, natural
Spec
- Quantity：1bag(5pieces)
- Series : VH
- Pitch : 3.96mm
- Number of Contacts : 9
- Number of Rows : 1
- Body Orientation : Top Entry
- Shrouded/Unshrouded : Shrouded
- Mounting Type : Through Hole
- Termination Method : Solder
- Type : Wire to Board
- Voltage Rating : 250 V ac/dc
- CODE No.:762-0730
