Features

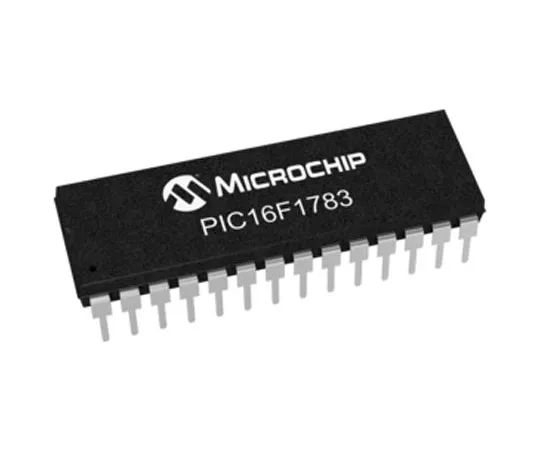

• PIC16F1782/1783 8-Bit Flash Microcontrollers. The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications. The PIC16F1782/1783 family of microcontrollers is based upon Microchip s enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, up to 7 Kbytes program memory, RAM up to 512 bytes and Data EEPROM of 256 bytes. On board is a configurable oscillator with ±1% accuracy. Microcontroller Features. 32 MHz Max. CPU Speed 49 Instructions 16 Level Hardware Stack 32 MHz Internal Oscillator – Selectable Frequency Range 0 to 32 MHz 25 I/O Pins XLP Technology Power-On Reset (POR) Power-Up Timer (PWRT) Oscillator Start-Up Timer (OST) Programmable Low Power Brown-Out Reset (LPBOR) Ext***ed Watchdog Timer (WDT) Enhanced Low-Voltage Programming (LVP) In-Circuit Serial Programming (ICSP) In-Circuit Debug (ICD). Peripherals. 11 Channel 12-bit Analogue to Digital Converter (ADC) 8-Bit Digital to Analogue Converters (DAC) Two Capture/Compare/PWM (CCP) Modules Two Programmable Switch Mode Controllers (PSMC) Two Operational Amplifiers Three Comparators Two 8-bit Timers One 16-bit Timer Master Synchronous Serial Port (MSSP) with SPI and I2C Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) Fixed Voltage Reference (FVR)
