Electronic/Electrical Parts and Controll Equipments

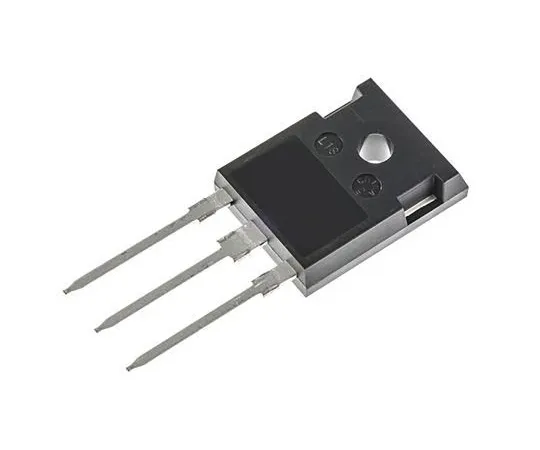

63-5070-67 STW75NF20 N-Channel MOSFET, 75 A, 200 V STripFET, 3-Pin TO-247 STMicroelectronics STW75NF20
model:
63-5070-67
brand:
STMicroelectronics
Product Description
Product Model: 63-5070-67Product Brand: STMicroelectron […]
Contact Us
Product Details
Product Model: 63-5070-67
Product Brand: STMicroelectronics
Features
- N-Channel STripFET™, STMicroelectronics
Spec
- Quantity：1piece
- Channel Type : N
- Maximum Continuous Drain Current : 75 A
- Maximum Drain Source Voltage : 200 V
- Maximum Drain Source Resistance : 34 mΩ
- Maximum Gate Threshold Voltage : 4V
- Minimum Gate Threshold Voltage : 2V
- Maximum Gate Source Voltage : -20 V, +20 V
- Package Type : TO-247
- Mounting Type : Through Hole
- Pin Count : 3
- Channel Mode : Enhancement
- Category : Power MOSFET
- Maximum Power Dissipation : 190 W
- Maximum Operating Temperature : +150 °C
- CODE No.:761-2934
