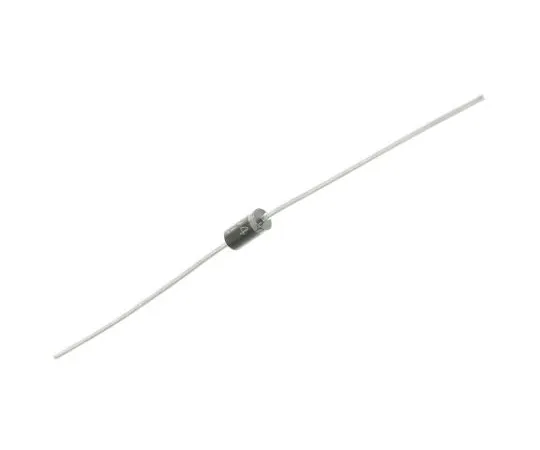

63-5069-78 ON Semi 400V 1A, Silicon Junction Diode, 2-Pin DO-41 UF4004 UF4004

model: 63-5069-78
brand: ON Semiconductor

Product Description

Product Model: 63-5069-78Product Brand: ON Semiconducto […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5069-78
Product Brand: ON Semiconductor

Features

  • ON Semi UF4001-UF4007 Fast Rectifiers. The ON Semiconductor UF4001 to UF4007 series are ultra-fast rectifiers within a DO-41 (DO-240AL) plastic package. These 1A glass-passivated junction rectifiers are reliable, general purpose components which can be ***d for a wide variety of applications.. Features ; Benefits: Low forward voltage drop High surge current capability High current capability What is a glass-passivated junction rectifier? These devices feature a layer of passivation glass around the diode. A glass-passivated rectifier often enables higher reverse-voltage resistance and can sometimes reduce leakage. What is the operating junction temperature? -65°C to +150°C What are their maximum repetitive reverse voltages? UF4001 - 50V UF4002 - 100V UF4003 - 200V UF4004 - 400V UF4005 - 600V UF4006 - 800V UF4007 - 1000V

Spec

  • Quantity:1bag(50pieces)
  • Diode Configuration : Single
  • Number of Elements per Chip : 1
  • Peak Reverse Repetitive Voltage : 400V
  • Mounting Type : Through Hole
  • Package Type : DO-41
  • Diode Technology : Silicon Junction
  • Pin Count : 2
  • Maximum Forward Voltage Drop : 1V
  • Peak Reverse Recovery Time : 50ns
  • Diameter : 2.72mm
  • Peak Non-Repetitive Forward Surge Current : 30A
  • CODE No.:759-9421
