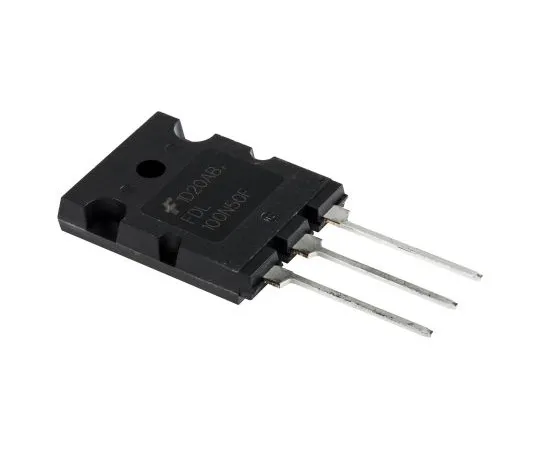

63-5069-56 FDL100N50F N-Channel MOSFET, 100 A, 500 V UniFET, 3-Pin TO-264 ON Semiconductor FDL100N50F
model:
63-5069-56
brand:
ON Semiconductor
Product Description
Product Model: 63-5069-56Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5069-56
Product Brand: ON Semiconductor
Features
- UniFET™ N-Channel MOSFET, Fairchild Semiconductor. UniFET™ MOSFET is Fairchild Semiconductor's high voltage MOSFET family. It has the smallest on-state resistance among the planar MOSFETs, and also provides superior switching performance and higher avalanche energy strength. In addition, the internal gate-source ESD diode allows UniFET-II™ MOSFET to withstand over 2000V HBM surge stress. UniFET™ MOSFETs are suitable for switching power converter applications, such as power factor correction (PFC), flat panel display (FPD) TV power, ATX (Advanced Technology eXt***ed) and electronic lamp ballasts.
Spec
- Quantity：1piece
- Channel Type : N
- Maximum Continuous Drain Current : 100 A
- Maximum Drain Source Voltage : 500 V
- Maximum Drain Source Resistance : 55 mΩ
- Minimum Gate Threshold Voltage : 3V
- Maximum Gate Source Voltage : -30 V, +30 V
- Package Type : TO-264
- Mounting Type : Through Hole
- Pin Count : 3
- Channel Mode : Enhancement
- Category : Power MOSFET
- Maximum Power Dissipation : 2.5 kW
- Number of Elements per Chip : 1
- CODE No.:759-9128
