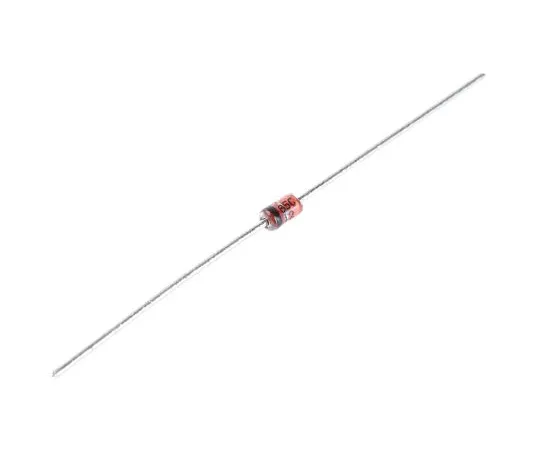

63-5069-31 ON Semiconductor, 12V Zener Diode 5% 1 W Through Hole 2-Pin DO-41 BZX85C12
model:
63-5069-31
brand:
ON Semiconductor
Product Description
Product Model: 63-5069-31Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5069-31
Product Brand: ON Semiconductor
Features
- Zener Diodes 1W, BZX85C Series, Fairchild Semiconductor. ON Semiconductor BZX85C series is a series of 1-Watt Zenor diodes that feature excellent operating characteristics and tight limits which reflect the superior capabilities of silicon oxide passivated junctions. These Diodes are axial leaded with a sealed glass package that will offer protection in all common environmental conditions. Features. -
Spec
- Quantity：1bag(100pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Maximum Power Dissipation : 1 W
- Package Type : DO-41
- Zener Type : Voltage Regulator
- Zener Voltage Tolerance : 5%
- Pin Count : 2
- Test Current : 20mA
- Maximum Zener Impedance : 9Ω
- Maximum Reverse Leakage Current : 500nA
- Length : 5.2mm
- Diameter : 2.72mm
- Dimensions : 2.72 (Dia.) x 5.2mm
- Minimum Operating Temperature : -65 °C
- CODE No.:759-8832
