Features

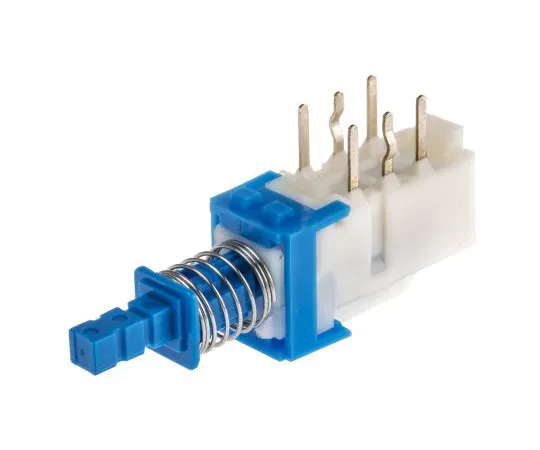

• Alps Push Switches - SPUJ ; SPUN Series. From Alps, this SPUJ and SPUN series of Push Switches are non-shorting, horizontal mounted, signal switches suitable for through hole PCB mounting. With a choice of straight or formed snap-in pins, these Push Switches are also available in momentary (non-lock) or latching (self-lock) action, with two and four pole contact configurations, various switching travel and operating forces. The SPUJ series have a 2mm travel while the SPUN Push Switches have 2.5mm switch travel. They are rated to 0.1A at 30V dc and 50μA at 3V dc with a 20mΩ contact resistance, 100MΩ minimum insulation resistance and 500V ac withstand voltage for one minute. Available in this Series: Stock number ; 758-2114 758-2114 is a 2 pole Momentary Straight switch Stock number ; 758-2111 758-2111 is a 2 pole Latching Straight switch Stock number ; 758-2118 758-2118 is a 4 pole Latching Straight switch Stock number ; 758-2127 758-2127 is a 4 pole Latching Snap-in switch Stock number ; 758-2095 758-2095 is a 2 pole Momentary Straight switch Stock number ; 758-2105 758-2105 is a 2 pole Momentary Snap-in switch Stock number ; 758-2098 758-2098 is a 2 pole Latching Straight switch Stock number ; 758-2091 758-2091 is 2 pole Latching Snap-in switch Stock number ; 758-2108 758-2108 is a 4 pole Latching Straight switch Stock number ; 758-2102 758-2102 is a 4 pole Latching Snap-in switch. Dimensions:. SPUJ 2 pole = 25mm overall depth, 8.8mm height, 7.5mm width SPUJ 4 pole = 32.5mm overall depth, 8.8mm height, 7.5mm width SPUN 2 pole = 42mm overall depth, 13mm height, 10mm width SPUN 4 pole = 54mm overall depth, 13mm height, 10mm width
