Features

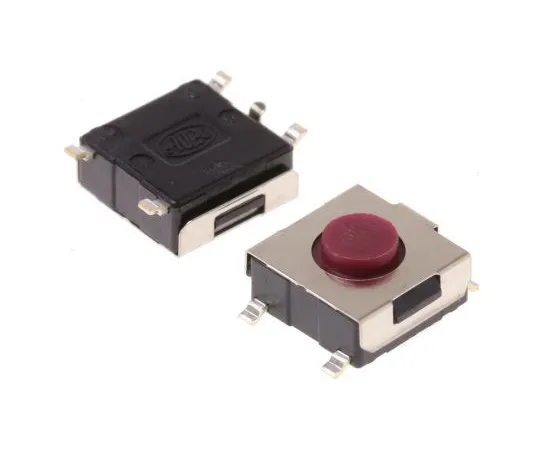

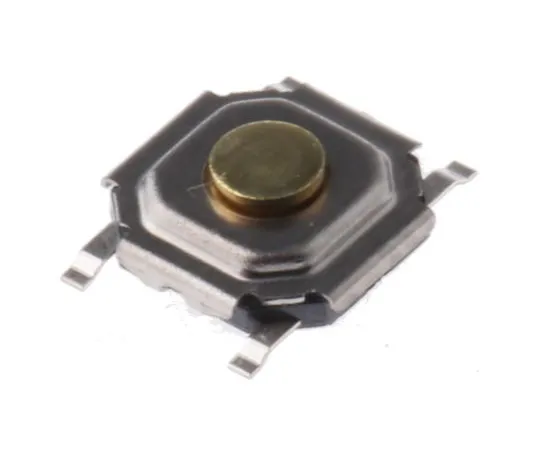

• Alps SMT Tact Switches - SKHM, SKPM, SKQG ; SKRA Series. Alps Tactile or Tact switches are SPST snap action switches to be ***d with small currents. This series also provide a minimum rating of 10 μA at 1 V dc and a maximum rating of 50 mA at 12 V dc. These Tact switches have SMT terminals, low contact resistance, high contact reliability and come in a wide selection of operating forces and switching travels. The SKPM series of Tact switches have a soft operating feel while the SKHM, SKQG and the SKRA series have a sharp operating feel. Wide range of operating forces Vertical operating direction Long life Low contact resistance 100mΩ Insulation resistance >100MΩ at 100Vdc SKHM series are fitted with a ground terminal SKPM, SKQG and SKRA series are suitable for *** in automotive applications
