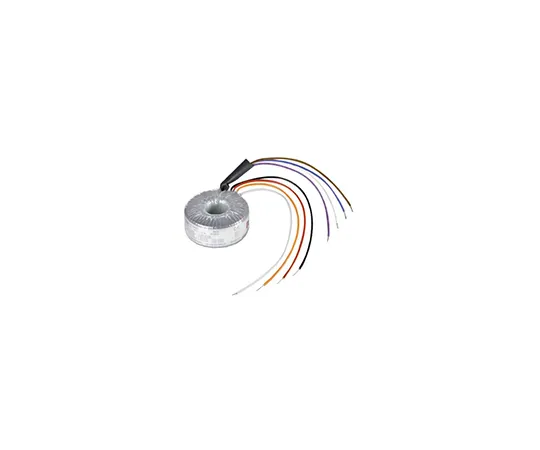

63-5066-36 2 Output Toroidal Transformer, 100VA, 2 x 30V ac RKD 100/2x30
Product Description
Product Model: 63-5066-36Product Brand: Block Features […]
Contact Us
Product Details
Product Model: 63-5066-36
Product Brand: Block
Features
- Mounting Kit. RKD Toroidal Transformers dual 115Vac input. High quality open style toroidal transformers with dual 115Vac 50/60Hz primary and secondary windings which may be connected in series or parallel or ***d indep***ently. Small size and low weight compared with traditional stacked lamination types Extremely low level of radiated magnetic field Very low induced noise (hum) Very low iron loss Supplied with mounting kit Insulation Class B
Spec
- Quantity：1piece
- Primary Voltage Rating : 2 x 115V ac
- Secondary Voltage Rating : 2 x 30V ac
- Power Rating : 100VA
- Number of Outputs : 2
- Height : 45mm
- Weight : 1.2kg
- Diameter : 94mm
- Dimensions : 94 (Dia.) x 45mm
- Minimum Operating Frequency : 50Hz
- Maximum Operating Frequency : 60Hz
- Mounting Type : Screw Mount
- Termination Type : Leads
- Fixing Hole Diameter : 92mm
- Maximum Temperature : +40°C
- CODE No.:758-1042
