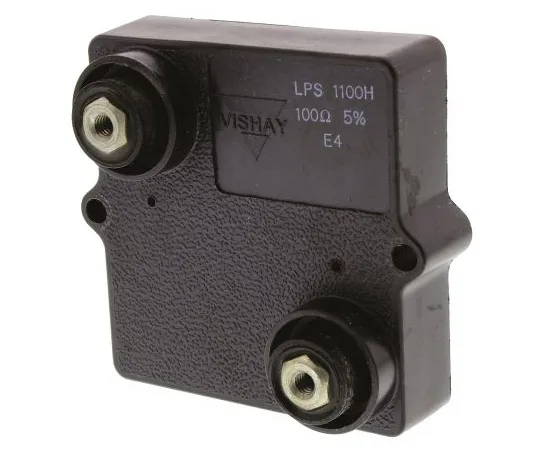

63-5065-74 Vishay LPS1100 Series ceramic, Planar SMD Screw Termination Thick Film Panel Mount Resistor, 100Ω ±5% 1.1kW LPS1100H1000JB
Product Description
Product Model: 63-5065-74Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-5065-74
Product Brand: Vishay
Features
- 1100 Watt LPS1100 Series. Vishay LPS 1100 series power resistors for mounting onto a heatsink. Featuring thick film technology, the LPS 1100 series is non inductive, easy mounting and has low thermal radiation from the case. Suitable for applications such as industrial, transportation, medical and HEV/EV. High power: up to 1100 W at 25 °C Small size, low profile: 57 mm x 60 mm Non inductive: < 0.1 μH High dielectric strength: up to 12 kVRMS Low weight: 79 g
Spec
- Quantity：1piece
- Resistance : 100Ω
- Power Rating : 1.1kW
- Series : LPS1100
- Package/Case : ceramic, Planar SMD
- Tolerance : ±5%
- Technology : Thick Film
- Termination Style : Screw
- Temperature Coefficient : 150ppm/°C
- Dimensions : 57 x 60mm
- CODE No.:756-8944
