Electronic/Electrical Parts and Controll Equipments

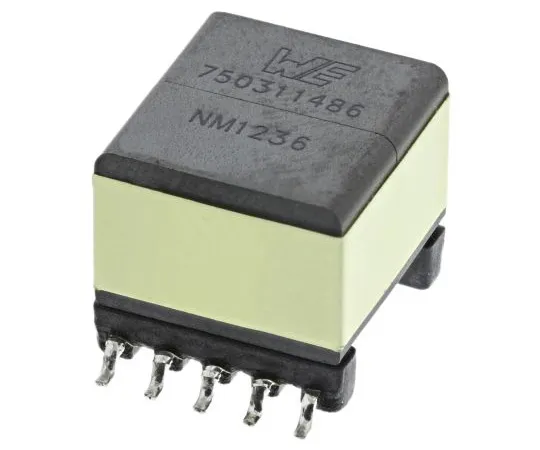

63-5065-70 1:10 Surface Mount Flyback Transformer, 100μH, 0.22Ω 750311486
model:
63-5065-70
brand:
Wurth Elektronik
Product Description
Product Model: 63-5065-70Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-5065-70
Product Brand: Wurth Elektronik
Features
- Wurth Flyback Transformers. Designed specifically for DC-DC convertors and offline PWM switching regulators The transformer is much smaller than a normal mains transformer for the same power rating due to the high operating frequency
Spec
- Quantity：1piece
- Primary Inductance : 100µH
- Primary DC Resistance : 0.22Ω
- Secondary DC Resistance : 31Ω
- Turns Ratio : 1:10
- Mounting Type : Surface Mount
- Leakage Inductance : 4.5µH
- Dimensions : 17.75 x 13.46 x 12.7mm
- Depth : 12.7mm
- Length : 17.75mm
- Width : 13.46mm
- Secondary Voltage Rating : 4 V, 200 v
- CODE No.:756-7409
