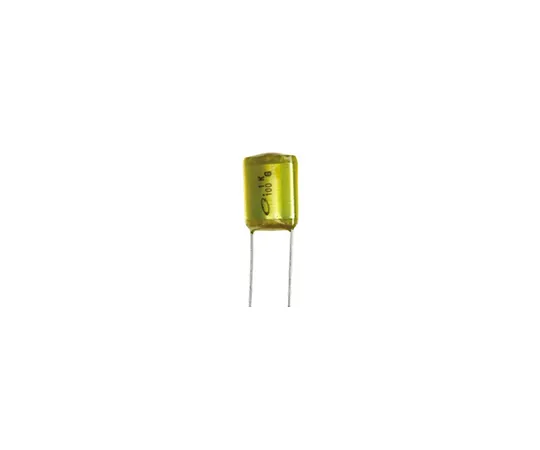

63-5064-78 Nichicon 330nF Polyester Capacitor PET 50V dc ±10% YX Series Radial QYX1H334KTP
Product Description
Product Model: 63-5064-78Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5064-78
Product Brand: NICHICON
Features
- YX Series Plastic Film Capacitors. These Nichicon brand YX series capacitors feature a polyester film and aluminium foil dielectric and are well suited to commercial and industrial applications. They are coated with an epoxy resin that is flame-retardant and resistant against humidity and solvents.
Spec
- Quantity：1bag(10pieces)
- Capacitance : 330nF
- Voltage : 50V dc
- Mounting Type : Radial
- Lead Pitch : 7.5mm
- Series : YX
- Tolerance : ±10%
- Dielectric : PET Film
- Length : 12.5mm
- Depth : 8mm
- Height : 16mm
- Dimensions : 12.5 x 8 x 16mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Tolerance Minus : -10%
- CODE No.:755-4330
