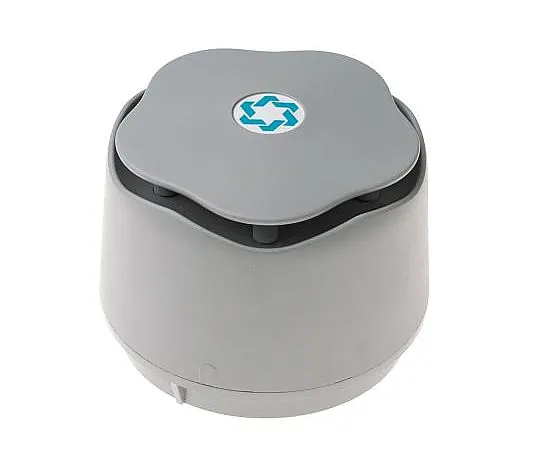

63-5064-55 Banshee Grey 32 Tone Electronic Sounder, 9 → 30 V dc, 110dB at 1 Metre 90002R0
Electronic/Electrical Parts and Controll Equipments

63-5064-55 Banshee Grey 32 Tone Electronic Sounder, 9 → 30 V dc, 110dB at 1 Metre 90002R0

model: 63-5064-55
brand: Hosiden Besson

Product Description

Product Model: 63-5064-55Product Brand: Hosiden Besson […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5064-55
Product Brand: Hosiden Besson

Features

  • EN54-3 by LPCB. To maintain IP rating when using a deep base, *** wall mounting bracket supplied. Do not drill fixing holes in deep base. Use suitably rated 20mm cable glands to fit cables or conduit via side knock-outs. Fit ‘O ‘ Ring seal between lens and base. Banshee Excel 32 Tone Sounder. The Banshee Excel Sounder from Hosiden Besson has 32 ***r selectable tones with a choice of 3 volume levels. Manufactured from a flame retardant ABS, these sounders are available with a shallow or deep base in either grey, white or red. If a Piezo Horn is not mentioned in the description then the unit will have a Rocking Armature Transducer fitted. Features and Benefits. EN54 - 3 approved by LPCB Ultra low current consumption 32 ***r selectable tones Choice of 3 volume levels Rated IP66 for deep base sounder and IP45 for shallow base sounder Installation via side ; rear cable entry Robust two in two out 2.5mm terminals Easy push ; twist lockable bayonet mounting Temperature range from -40 to +70°C Simple in ; out wiring blocks offering continuous override and dual signalling

Spec

  • Quantity:1piece
  • Supply Voltage : 9 → 30 V dc
  • IP Rating : IP45
  • Decibels at 1 Metre : 110dB
  • Current Type : DC
  • Number Of Tones : 32
  • Housing Colour : Grey
  • Mounting Style : Wall Mount
  • Diameter : 90 mm
  • Minimum Decibel : 95dB
  • Maximum Decibel : 110dB
  • Series : Banshee
  • Maximum Temperature : +70°C
  • CODE No.:755-4009

Related product recommendations

You may also be interested in the following products

63-7534-43 TRACOPOWER 35W 1 Output Embedded Switch Mode Power Supply SMPS, 3A, 12V dc Enclosed TXL 035-12S
Electronic/Electrical Parts and Controll Equipments
63-7013-61 Microchip Technology AT27C4096-55JU, EPROM 4Mbit 256K x 16 bit 55ns 44-Pin PLCC AT27C4096-55JU
Electronic/Electrical Parts and Controll Equipments

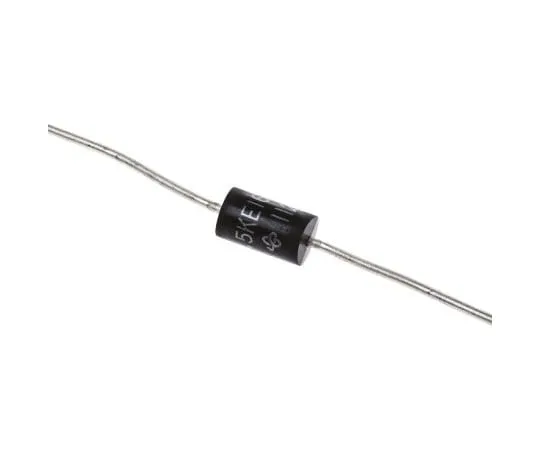

63-7649-60 Vishay 1.5KE160CA-E3/54, Bi-Directional TVS Diode, 1500W, 2-Pin 1.5KE 1.5KE160CA-E3/54
