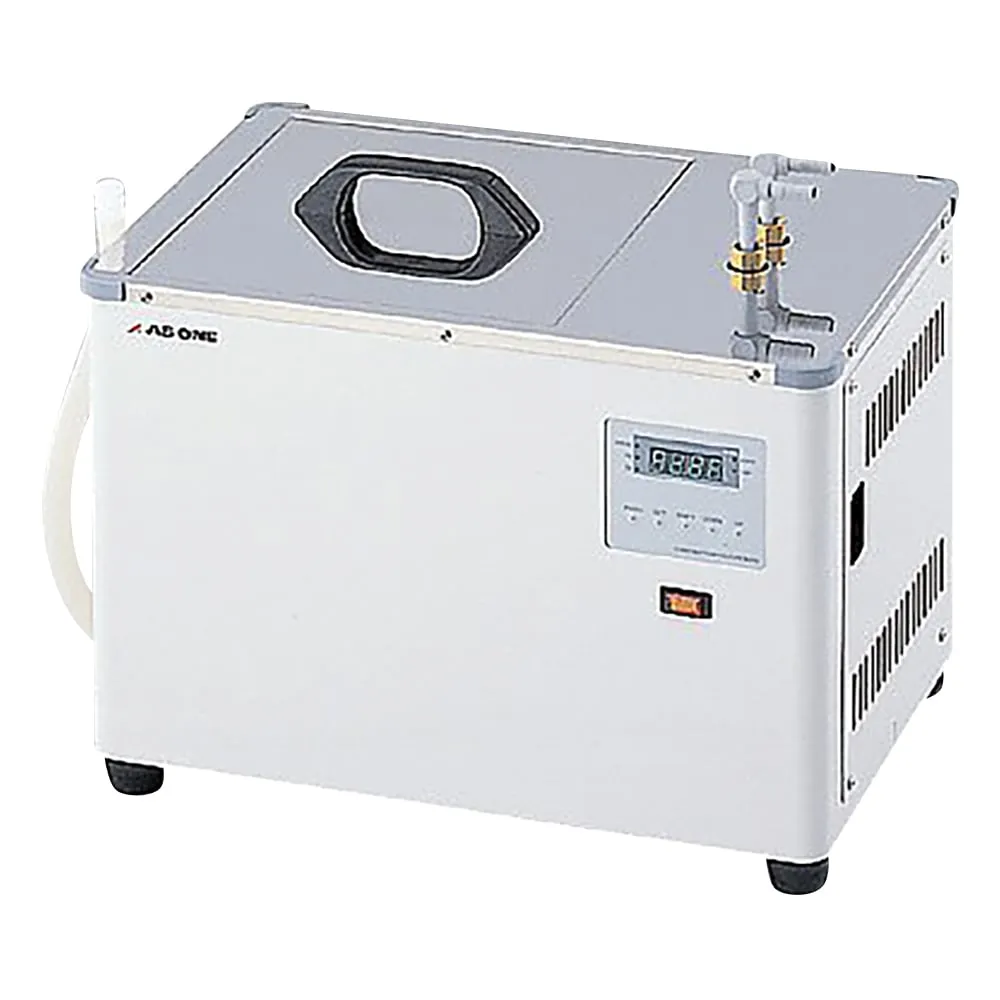

1-7557-01 Hot Water Circulator HTC-1000
Product Description
Product Model: 1-7557-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-7557-01
Product Brand: AS ONE Corporation
Features
- On/off timer function is standard and can be set at any time.
- It ***s a 360 degree free circulating nozzle for convenient ***.
Spec
- Model number: HTC-1000
- Sealed system circulation method
- Highest temperature rise time: About 90 minutes (when using as constant temperature water tank)
- Time settings range: 0 minute - 99 hours (1 minute unit)
- Temperature settings unit: 1℃
- Pump capacity: Maximum flow/17/20L/min, Maximum head/9.9/13.2m
- External dimensions: 505 x 360 x 370mm
- Internal dimensions: 300 x 300 x 300 (usable dimensions: 225) mm
- Circulation connection port (inlet, outlet) outer diameter: 11mm
- Water tank volume: 27L
- Safety device: Self-diagnosis function (Upper or lower limit temperature abnormality detection, heater disconnection detection, sensor abnormality detection), electrical leakage and overcurrent breaker, abnormal heating prevention device, float type no-water burning prevention
- Power supply: AC100V 50/60Hz 23A
- Weight: Approx 25kg
- Temperature control width: Within ±0.5℃
- Temperature adjustment range (℃): Room temperature +25 - 90
- *Performance is ambient temperature 25℃, when closed the cover with water volume of 25L.
