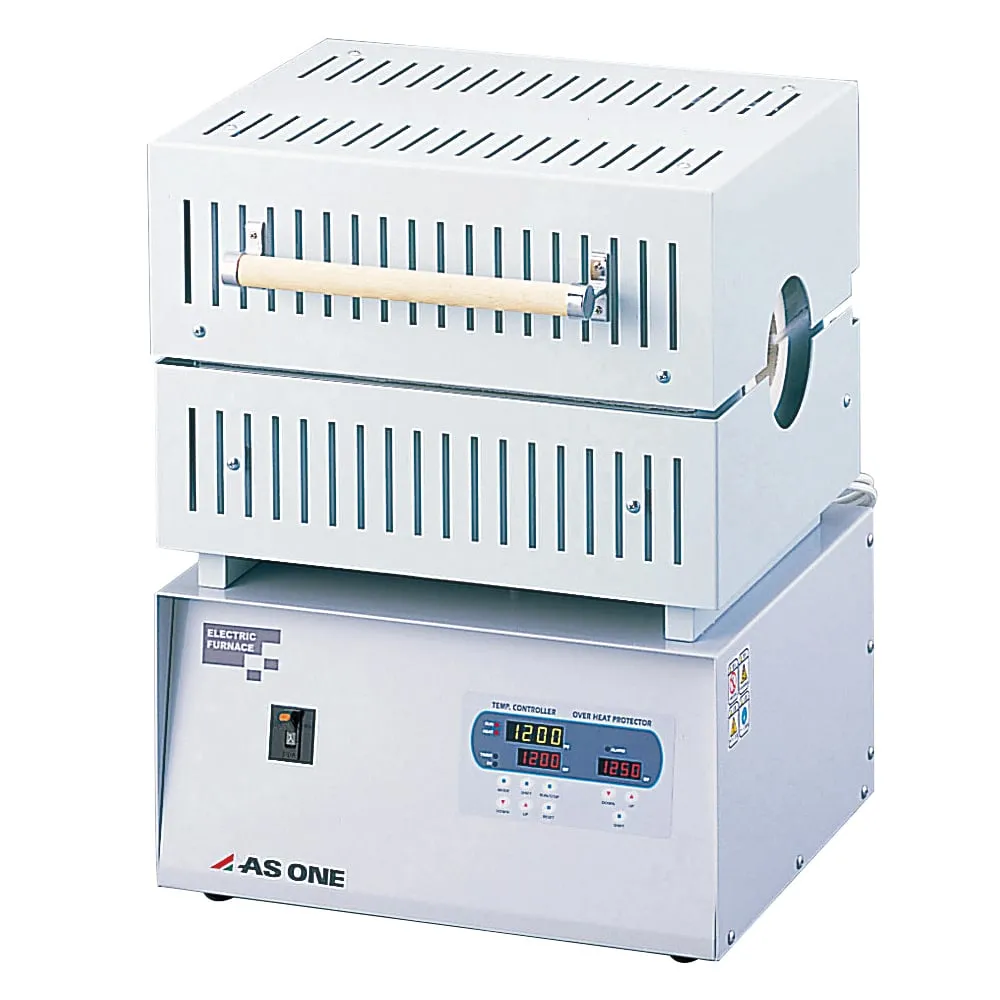

1-7555-21 TMF-300N Program Tubular Electric Furnace TMF-300N
Product Description
Product Model: 1-7555-21Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-7555-21
Product Brand: AS ONE Corporation
Features
- Normal maximum temperature is 1200°C and the temperature is increased rapidly.
- Using a core tube and gas replacement unit allows heating in an inert environment.
- You can choose the material of the core tube according to the application.
- In addition to the automatic overtemperature prevention function linked to the set temperature, it also has a completely indep***ent overtemperature prevention function and a burnout function to detect sensor abnormalities.
- It has a safety function to cut off the power to the heater when the door is opened.
Spec
- Model number: TMF-300N
- Control system: PID control, SSR output
- Inner furnace dimension (mm): 30 x 300
- Temperature settings range: 100 - 1200℃
- Sensor: R thermocouple x 2
- Function: Program setting (16 steps, 8 patterns), timer
- Safety device: Indep***ent excessive rise prevention function (set temperature digital input), door switch, electrical leakage breaker, self-diagnosis function (main relay is OFF when sensor is disconnected or heater is disconnected)
- Exterior/furnace material: Steel heat-resistant coating/refractory brick
- Heater capacity: 1200W
- Power supply: 100VAC 50/60Hz 12A
- Power cord length: 2m (2P plug)
- Weight: Approx 38kg
- External dimensions: 395 x 350 x 488mm
- *Furnace core tube is not included in the package.
*This product might require extra fees.
