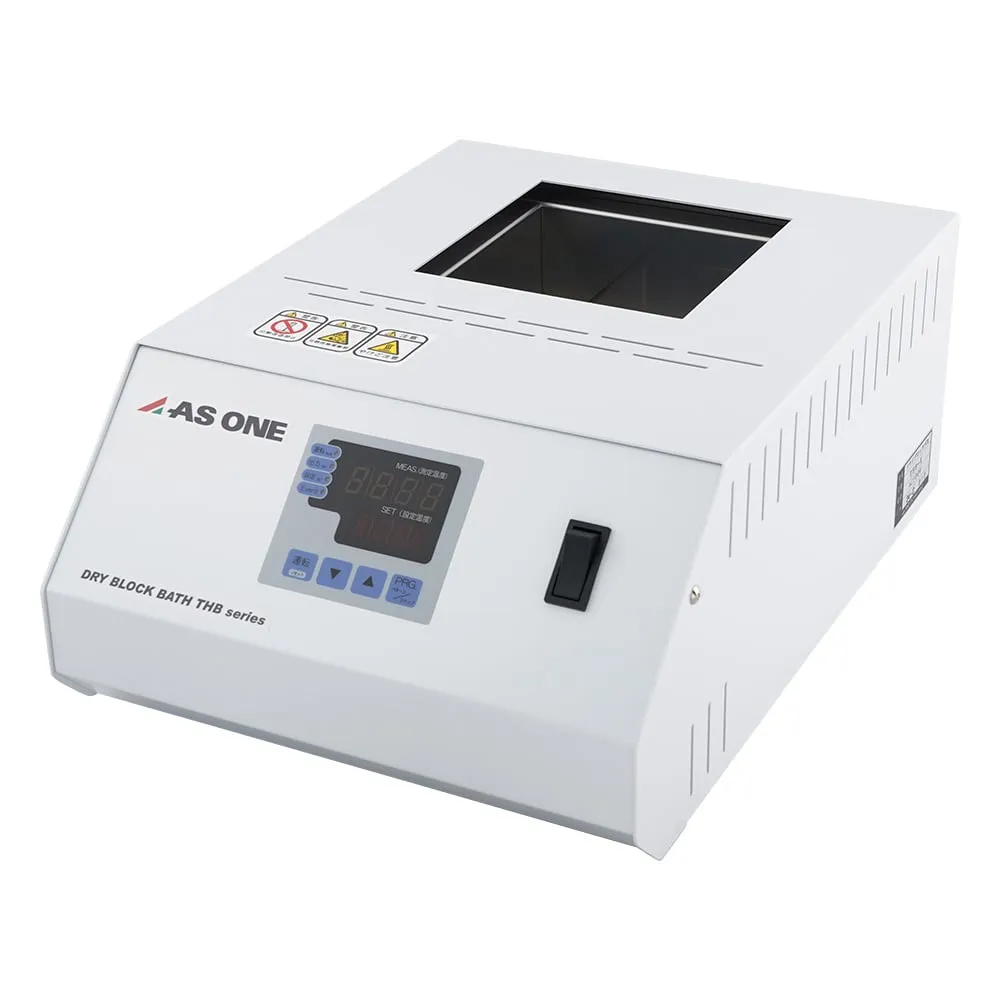

1-7554-31 Dry Block Bath THB-1
Product Description
Product Model: 1-7554-31Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-7554-31
Product Brand: AS ONE Corporation
Features
- Program function plus temperature rise gradient can be changed - Equipped with 16 step 4 pattern program function, temperature rise gradient can be changed.
- The block is heated uniformly by a planar heater with excellent temperature control accuracy.
- Reduced time to reach maximum temperature while suppressing overshoot at low temperatures.
Spec
- Specifications: Block 1 piece Shelf
- Size (mm): 240 x 330 x 139
- Operating Temperature Range: R.T. + 5 to 200 ° C
- Temperature Adjustment Accuracy: ± 0.3 ° C (at 200 ° C/Φ 16.5 Aluminum Block)
- Temperature Distribution Width: 2.0 ° C (at 200 degrees C)
- Maximum time to reach temperature: about 35 minutes
- Temperature Control Method: PID Control, SSR Output
- Program function: 16 steps, 4 patterns
- Time setting range: 0 minutes to 99 hours 59 minutes
- resolution (Temperature/Time): 1 ° C/1 minute
- temperature sensors: K class thermocouple
- Heater capacity: Planar Heater 370 W
- Safety Function: Overcurrent F***, Temperature Controller Alarm (Excessive Temperature Rise/Sensor Disconnection: Heater OFF)
- power supply: AC100V 50/60 Hz 3.8 A
- power cord length : about 2.6 m (3P Plug)
- Weight: about 5 kg
- Accessory: Handle for Removing Aluminum Block
- *Aluminum block is not included in the body.
- *Custom fabrication is possible for the hole diameter, the number of holes, and the depth of the block. Please contact us.
