laboratoryinstruments

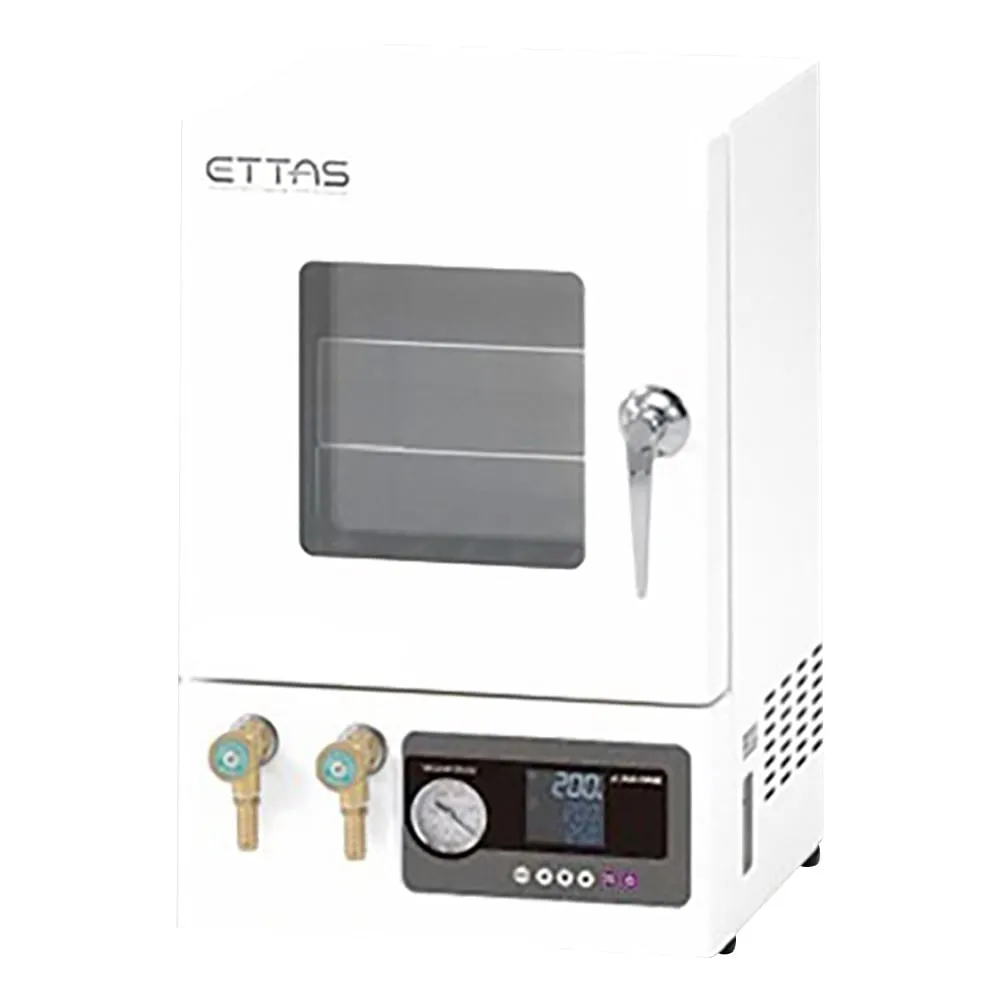

1-7547-51 Vacuum Dryer (SB Series) AVO-200SB
Product Description
Product Model: 1-7547-51Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-7547-51
Product Brand: AS ONE Corporation
Features
- For accurate internal temperature control.
- A vacuum pump connection valve and vacuum gauge are placed on the front operation panel for easy piping and operation.
- Double doors with tempered glass doors and protective polycarbonate doors are ***d.
- Heat-resistant silicon packing provides superior durability and airtightness.
- In addition to a two-stage PV/SV display that makes it easy to check measured values and set values, an overtemperature prevention set temperature display is adopted.
- Timers (4 types) and program operation (16 steps, 8 patterns) are standard equipment. In addition to temperature logging (Bluetooth communication), it has 100 VAC 1 A output in case of error.
- Features of Wireless Logger App: You can check measured and set temperatures from a distance.
- The measured temperature and set temperature are stored in the memory in the board at regular intervals.
- You can operate it intuitively without a manual.
- Recorded data that is read out is automatically converted into attached files in CSV format, which can be sent to a computer or other device simply by entering an email address, and the file can be opened with spreadsheet software such as EXCEL to graph, edit and create forms.
- Even if the recorded data is read, the data is retained in the board even if the power is turned off until it is erased.
- You can start, stop and delete records from the app.
- Recording stops automatically when memory is full.
Spec
- Inner capacity (L): 8
- Additional function: Timer function/Program function/Timer for specifying day and time
- Sensor: K class thermocouple x 2 pieces (1 each for temperature control and overheating prevention)
- Safety device: Over-rise prevention function (digital setting type), self-diagnosis function (Heater disconnection detection and sensor error detection), overcurrent breaker
- Communication function: standards : Bluetooth Smart (Bluetooth 4.2)/Distance: Class2 (Approximately 10 m)
- Logger function: Recording period: 2 seconds/10 seconds/30 seconds/1 minute/10 minutes/60 minutes
- Display period: 2 sec/10 sec/30 sec/sec/60 sec/300 sec
- Recording method: full stop (Stop recording in full memory)
- recording format: CSV format
- *Compatible OS: iOS 11.4 and later
- *compatible models: iPhone 5s, 5c, 6, 6 Plus, 6s Plus, SE, 7, 7 Plus, 8, 8 Plus, X
- Additional function: timer (ON/OFF timer, SV start/ON/OFF timer)/temperature gradient program of up to 16 steps x 8 patterns/day/time specification timer
- Error output: AC100V 1A output (M4 terminal block)
- material
- *Exterior: Steel baked paint
- *Interior: SUS304
- *shelf board: Aluminium
- *Valves, Piping, Fittings: brass (C -3771, C -3604)
- *Vacuum gauge: brass (C 2680 TW, C 3604 BD)
- *Door packing: silicone rubber
- *Observation window: tempered glass (Thickness 12mm), protective plate made of polycarbonate
- Outer dimensions (mm): 343 x 376 x 509
- Inner dimensions (mm): 200 x 200 x 200
- Heater capacity: 800W
- Power supply: AC100V 50/60Hz 8A
- Power cord length: 2.5 m
- Weight: about 25kg
- Accessories: shelf board x 2 pieces
- Heating system: Can body heating system
- Temperature settings range: 40 to: 220 °C
- Vacuum range: 0.1 to 101kPa
- Control method: PID control and SSR output
- Valve diameter: outer diameter φ13 mm
