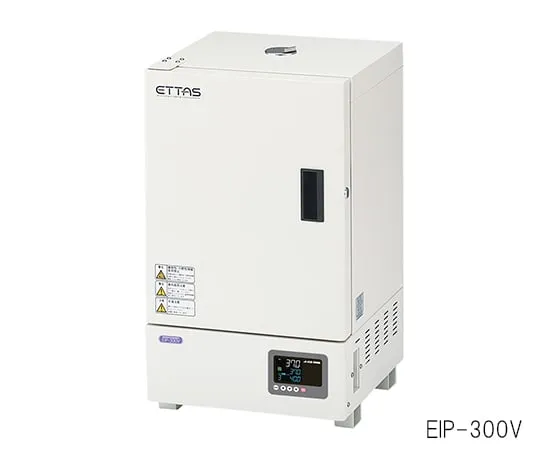

1-7474-31-28 Incubator (programmable, air jacket with natural convection) 27 L with Pre-shipment Validation EIP-300V
Product Description
Product Model: 1-7474-31-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-7474-31-28
Product Brand: AS ONE Corporation
Features
- Taking safety more seriously, digital safety equipment is adopted.
- Safety is further considered with the standard installation of an indep***ent excessive rise prevention device that can digitally set the set temperature.
- Uses a highly visible color LCD display for improved operability.
- In addition to the PV/SV two-stage display that makes it easy to check the measured values and the set values, the over-temperature rise prevention set temperature display is adopted.
- 8 step 4 pattern program function is equipped as standard, and you can choose from 4 types according to the quantity and size of the sample.
- The air jacket type natural convection system provides a uniform and stable temperature environment and prevents the sample from drying out.
- You can observe the sample without opening the double door type inner door with transparent inner door.
- The temperature control ***s PID control, which enables stable temperature control with high accuracy.
- A security key is included.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature points: 9 points at 37 degrees Celsius
- External dimensions (mm): 400 x 410 x 685
- Interior dimensions (mm): 300 x 300 x 300
- Convection system: Natural convection air jacket
- Temperature control range: room temperature + 5 ~ 80 degrees C
- Time to reach 37 degrees: About 20 minutes
- Temperature distribution (JTM K05): +/- 0.6 degrees C (at 37 degrees C)
- Temperature variation (JIS): +/- 0.6 degrees C (at 37 degrees C)
- Temperature Gradient (JIS): 2.0 degrees C (at 37 degrees C)
- Temperature control system: PID control, SSR output
- Added functions: 8-step 4-pattern program function
- Safety device
- Indep***ent overtemperature protection device (operating temperature can be set digitally)
- Overcurrent breaker burnout mechanism (heater OFF when sensor is disconnected)
- Heater capacity: 200 W
- Temperature Sensor: Platinum temperature resistor Pt 100 ohm
- Overrise prevention sensor: K thermocouple
- Storage capacity: 27 L
- Shelf Pitch/Number of Racks: 35 mm Pitch/7 Racks
- Exterior/Interior: Steel powder coating/Stainless steel (SUS 304)
- Inner door material: Tempered glass
- Vent: 32 mm in diameter x 1
- Weight: approximately 30 kg
- Power Supply: 100 VAC 50/60 Hz Cord Length 2 m 3 P Plug
- Shelf load capacity: 15 kg
- Accessories: 2 shelf boards, 2 shelf rails
- Local validation services (IQ/OQ) are also available. Please contact us.
- *The on-site validation service is a service that performs installation qualification (IQ) and operational performance qualification (OQ) at the installation site and submits an inspection form.
- *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
