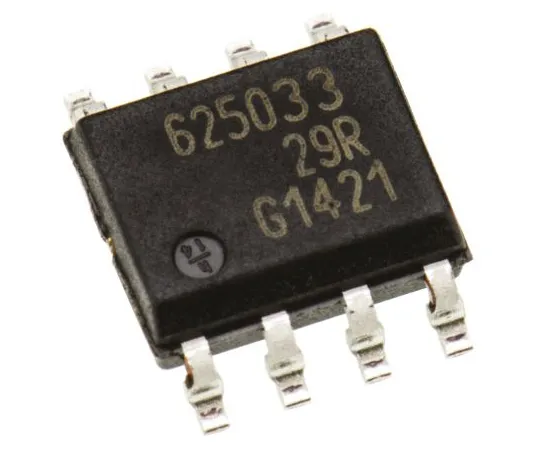

63-5058-28 Infineon TLE6250GV33XUMA1, CAN Transceiver 1MBd 1-Channel ISO 11898, 8-Pin SOIC TLE6250GV33XUMA1
Product Description
Product Model: 63-5058-28Product Brand: Infineon Featur […]
Contact Us
Product Details
Product Model: 63-5058-28
Product Brand: Infineon
Features
- CAN Bus Tranceivers, Infineon. Infineon s CAN (Control Area Network) transceivers are designed for *** in the automotive industry. The data rate can go up to 1Mbps and they have different features including receive only mode, INH output as well as Bus wake up inputs. The Automotive CAN Transceiver is ***d to working in tough environments and may even be apply in modern vehicles like Body, Safety and Powertrain.. ISO 11898 International Standard
Spec
- Quantity：1bag(2pieces)
- Maximum Data Rate : 1MBd
- Number of Transceivers : 1
- Standard Supported : ISO 11898
- Power Down Mode : Standby
- Mounting Type : Surface Mount
- Package Type : SOIC
- Pin Count : 8
- Dimensions : 5 x 4 x 1.45mm
- Length : 5mm
- Width : 4mm
- Height : 1.45mm
- Maximum Operating Supply Voltage : 5.5 V
- Maximum Operating Temperature : +160 °C
- Minimum Operating Supply Voltage : 4.5 V
- CODE No.:753-3279
