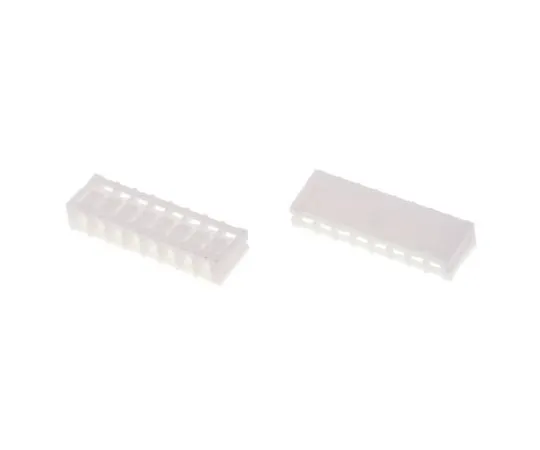

63-5055-46 JST SZN Connector Housing, 1.5mm Pitch, 8 Way, 1 Row 8P-SZN
Product Description
Product Model: 63-5055-46Product Brand: JST Features Fo […]
Contact Us
Product Details
Product Model: 63-5055-46
Product Brand: JST
Features
- For 1.5mm SZN Board-In Contacts see stock number ; 752-1829 752-1829 typical. 1.5mm Board-In SZN Connector Housings. These JST Wire to Board Crimp style connectors are a Board-In type. The 1.5mm pitch SZN series provide high-density mounting in an efficient and economical manner. The design of the housing of these slim low-profile Board In 1.5mm pitch SZN connectors allows easy insertion and secure locking of the contact.
Spec
- Quantity：1bag(10pieces)
- Number of Contacts : 8
- Number of Rows : 1
- Pitch : 1.5mm
- Mounting Type : Through Hole
- Series : SZN
- For Use With : Board-In Connector, Crimp Connector
- Body Orientation : Straight
- Length : 13mm
- Width : 2.4mm
- Depth : 4.25mm
- Housing Material : PA 66
- CODE No.:752-1844
