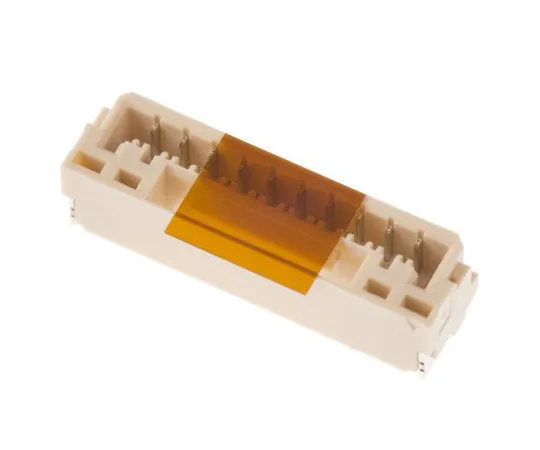

63-5055-33 JST GH, 10 Way, Straight PCB Header BM10B-GHS-TBT(LF)(SN)
Product Description
Product Model: 63-5055-33Product Brand: JST Features 1. […]
Contact Us
Product Details
Product Model: 63-5055-33
Product Brand: JST
Features
- 1.25mm Wire to Board GH Series Top Entry Headers. The JST 1.25mm pitch GH Wire to Board Connector Range has a low insertion force making them suitable for PDP, LCD or any small electronics equipment. The design of the Wire to Board GH Range incorporates a secure locking structure for the connector parts including the contacts. These Wire to Board GH Connector Range 1.25 mm pitch, SMT Top Entry shrouded headers have fork shaped contacts which are supported by grooves in the side of the housing to **** prevent deformation. For 1.25mm GH Series Housings see stock number ; 752-1734 752-1734 typical.
Spec
- Quantity:1bag(5pieces)
- Series : GH
- Pitch : 1.25mm
- Number of Contacts : 10
- Body Orientation : Straight
- Shrouded/Unshrouded : Shrouded
- Mounting Type : Surface Mount
- Termination Method : Solder
- Contact Material : Phosphor Bronze
- Voltage Rating : 50 V ac/dc
- CODE No.:752-1784
