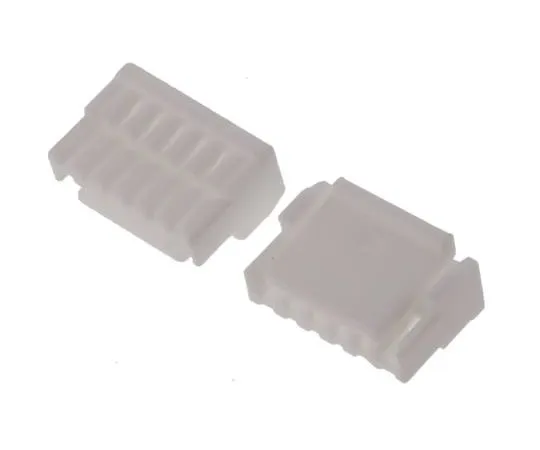

63-5055-21 JST GH Connector Housing, 1.25mm Pitch, 6 Way, 1 Row Right Angle, Straight GHR-06V-S
Product Description
Product Model: 63-5055-21Product Brand: JST Features GH […]
Contact Us
Product Details
Product Model: 63-5055-21
Product Brand: JST
Features
- GH Series Wire to Board Housings. The GH Series from JST are a range of connectors that have been developed with a low insertion force which makes them suitable for PDP, LCD or any small electronics equipment. The design incorporates a secure locking structure for the connector parts including the contacts. Features and Benefits. 1.25 mm pitch Secure locking of housing and contacts Easier mating due to low insertion Prevention of contact deformation during crimping Low insertion force with clear click sounds
Spec
- Quantity：1bag(10pieces)
- Number of Contacts : 6
- Number of Rows : 1
- Pitch : 1.25mm
- Mounting Type : Cable Mount
- Series : GH
- For Use With : Board-In Connector, Crimp Connector
- Body Orientation : Right Angle, Straight
- Length : 8.75mm
- Width : 4.15mm
- Depth : 5.7mm
- Housing Material : PBT
- CODE No.:752-1743
