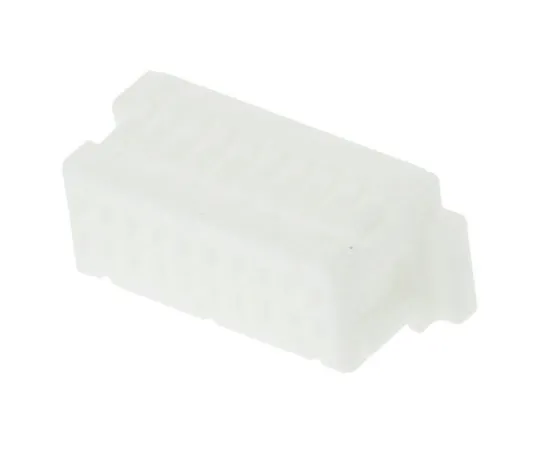

63-5055-08 JST SHD Female Connector Housing, 1mm Pitch, 20 Way, 2 Row Right Angle, Straight SHDR-20V-S-B
Product Description
Product Model: 63-5055-08Product Brand: JST Features Fo […]
Contact Us
Product Details
Product Model: 63-5055-08
Product Brand: JST
Features
- For 1.0mm SHD Series Contacts see stock number ; 752-1683 752-1683 typical. For 1.0mm SHD Series Headers see stock number ; 752-1712 752-1712 typical. 1.0mm Wire to Board SHD Series Housings. The Wire to Board SHD Connector Range 1.0mm pitch housing design provides protusions on the ***s to assist disengagement without the need to pull the wires.
Spec
- Quantity：1bag(10pieces)
- Number of Contacts : 20
- Number of Rows : 2
- Pitch : 1mm
- G***er : Female
- Mounting Type : Cable Mount
- Series : SHD
- For Use With : Board-In Connector, Crimp Connector
- Body Orientation : Right Angle, Straight
- Length : 13mm
- Width : 4.9mm
- Depth : 5mm
- Housing Material : PBT
- CODE No.:752-1686
