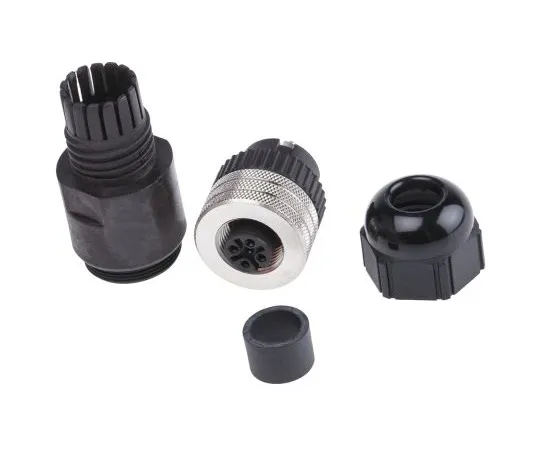

63-5055-01 Brad 120071 Series M12 Cable Mount Connector, 5 contacts Socket 1200710043
Product Description
Product Model: 63-5055-01Product Brand: Brad Features B […]
Contact Us
Product Details
Product Model: 63-5055-01
Product Brand: Brad
Features
- Brad® Micro-Change® M12 Field Attachable Connectors. These Brad® Micro-Change® M12 Field Attachable single keyways (A-Coding) Connectors allow custom cables to be assembled anywhere. The gold plated copper contacts of the Brad® Micro-Change® M12 Field Attachable Connectors have Nickel plated set screws for the attachment of up to 18 AWG (0.75 mm²) cable. IEC compliant M12 connector IP67, NEMA 6 rated for harsh environments Anti-vibration feature Stock numbers 751-9154 and 751-9166 have a cable diameter range of 3.3 - 6.6 mm with a PG7 Gland thread. Stock numbers 751-9150 , 751-9157 , 751-9160 and 751-9163 have a cable diameter range of 4.1 - 8.1 mm with a PG9 Gland thread
Spec
- Quantity：1piece
- Number of Contacts : 5
- Plug/Socket : Socket
- Connector Size : M12
- Termination Method : Screw Down
- Shell Size : 20mm
- Current Rating : 4A
- IP Rating : IP68
- Contact G***er : Female
- Voltage Rating : 30 V ac, 36 V dc
- Mating Type : Quick Disconnect
- Body Orientation : Straight
- Series : 120071
- Housing Material : Nylon
- CODE No.:751-9163
