Electronic/Electrical Parts and Controll Equipments

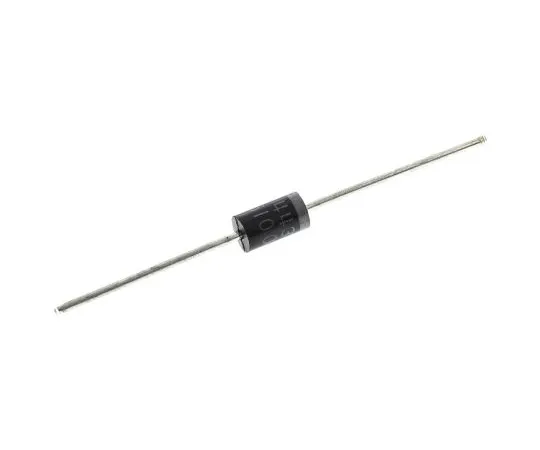

63-5054-73 Diodes Inc 100V 5A, Schottky Diode, 2-Pin DO-201AD SB5100-T SB5100-T
Product Description
Product Model: 63-5054-73Product Brand: DiodesZetex Fea […]
Contact Us
Product Details
Product Model: 63-5054-73
Product Brand: DiodesZetex
Features
- Diodes Inc SB570-SB5100 Schottky Barrier Rectifiers. Benefits:. Guard Ring Die Construction for Transient Protection Low Power Loss, High Efficiency High Surge Capability High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 150A Peak Lead Free Finish, RoHS Compliant. Features:. Case: DO-201AD Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Polarity: Cathode Band Marking: Type Number Moisture Sensitivity: Level 1 per J-STD-020C. Typical Applications. Schottky diodes are ***d for the voltage clamping applications. Low Voltage ; High frequency inverters Free Wheeling Polarity protection applications
Spec
- Quantity：1bag(10pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 100V
- Mounting Type : Through Hole
- Package Type : DO-201AD
- Diode Technology : Schottky
- Pin Count : 2
- Maximum Forward Voltage Drop : 800mV
- Diameter : 5.3mm
- Peak Non-Repetitive Forward Surge Current : 150A
- CODE No.:751-4843
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

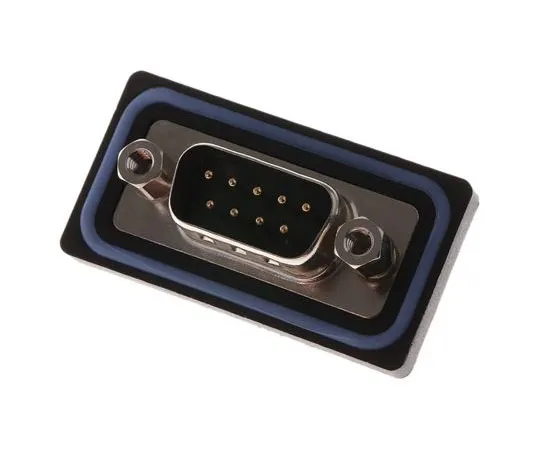

63-7674-72 ASSMANN WSW A-DS Series Panel Mount, 9 Pin D-sub Connector Plug, Shell Size E Waterproof D-Sub A-DS 09 LL-WP
model: 63-7674-72
brand: ASSMANN WSW
Electronic/Electrical Parts and Controll Equipments
63-7530-50 TE Connectivity Male N to Male N RG213 Coaxial Cable, 50 Ω 1337803-4
model: 63-7530-50
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments

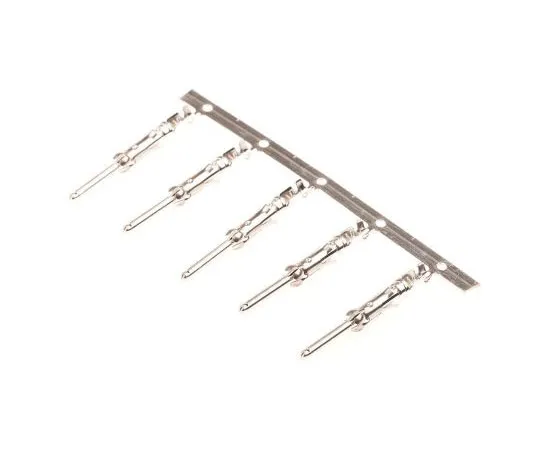

63-7684-09 TE Connectivity Type III+ Male Crimp Terminal Contact 20AWG 2-66102-5 2-66102-5
