Features

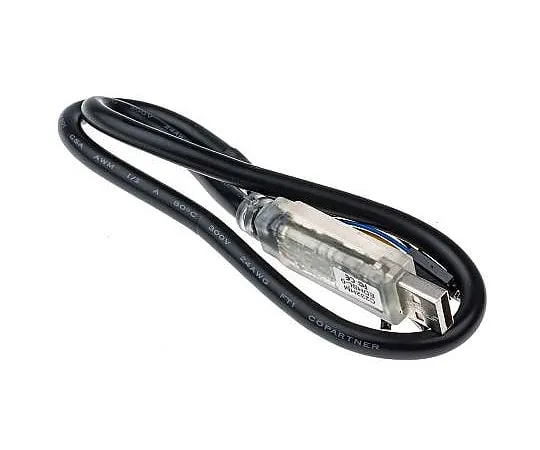

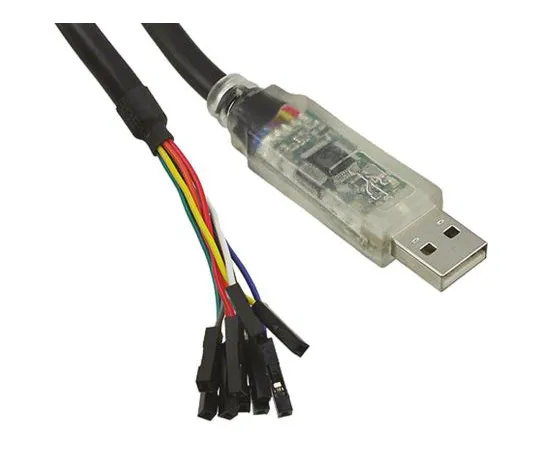

• USB 2.0 Hi-Speed to MPSSE Cable, FTDI Chip. The USB 2.0 Hi-Speed to MPSSE cables contain a small internal electronic circuit board, utilising the FTDI FT232H, encapsulated into the USB connector *** of the cable. This chip handles all the USB signalling and protocols. The cables provide a fast, simple way to connect devices with 3.3 or 5V digital interfaces to USB. Based on the single chip USB Hi-Speed FT232H device USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible Entire USB protocol handled on the chip – No USB-specific firmware programming required USB Type A connector for direct connection to a host or hub USB bus powered Fully assisted hardware or X-On / X-Off software handshaking Synchronous Serial (MPSSE) data rates of up to 30Mbps on JTAG, SPI and I²C 1kByte receive and transmit buffers for high data throughput Transmit and receive LED drive signals Adjustable receive buffer timeout Support for USB susp*** and resume Low operating and USB susp*** current Low USB bandwidth consumption UHCI / OHCI / EHCI host controller compatible Operating temperature range: -40 to +85°C Cable length: 1800mm FTDI ‘s royalty-free D2XX drivers eliminate the requirement for USB driver development in most cases
