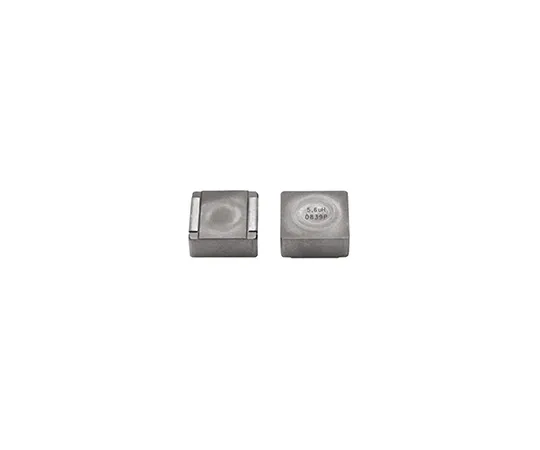

63-5051-92 Vishay IHLP-6767GZ-01 Series Type 6767 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 22 μH ±20% IHLP6767GZER220M01
Product Description
Product Model: 63-5051-92Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-5051-92
Product Brand: Vishay
Features
- IHLP6767GZ-01 Series Magnetically Shielded Wire Wound Chokes. Vishay IHLP-6767GZ-01 series high current low profile shielded inductors. The IHLP-6767GZ-01 series handles high transient current spikes without saturation and has ultra low buzz noise due to its composite construction. Frequency range up to 2.0 MHz Lowest DC Resistance / μH in this package size. Applications include: PDA/****book/desktop/server devices; High current POL converters; Low profile, high current power supplies; Battery powered devices; DC/DC converters in distributed power systems; DC/DC converter for Field Programmable Gate Array (FPGA)
Spec
- Quantity：1piece
- Inductance : 22 μH
- Maximum DC Current : 11A
- Package/Case : 6767
- Length : 17.15mm
- Depth : 17.15mm
- Height : 7mm
- Dimensions : 17.15 x 17.15 x 7mm
- Shielded : Yes
- Tolerance : ±20%
- Maximum DC Resistance : 26.5mΩ
- Series : IHLP-6767GZ-01
- Core Material : Metal Composite
- Maximum Self Resonant Frequency : 2MHz
- Minimum Operating Temperature : -55°C
- CODE No.:748-7568
