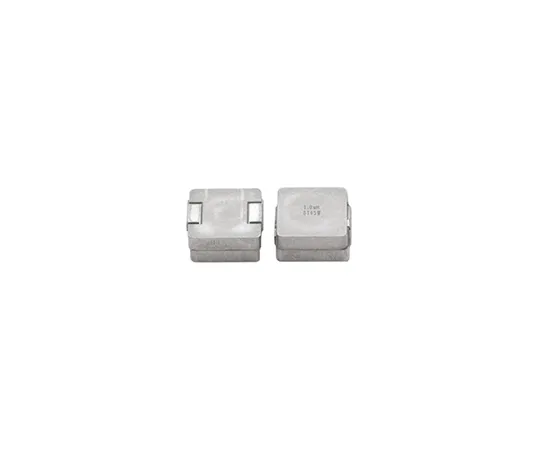

63-5051-86 Vishay IHLP Series Type 5050 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 3.3 μH ±20% Wire-Wound IHLP5050FDER3R3M01
Product Description
Product Model: 63-5051-86Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-5051-86
Product Brand: Vishay
Features
- IHLP5050FD-01 Series Magnetically Shielded Wire Wound Chokes. Vishay IHLP-5050FD-01 series high current low profile shielded inductors. The IHLP-5050FD-01 series handles high transient current spikes without saturation and has ultra low buzz noise due to its composite construction. Frequency range up to 5.0 MHz Lowest DC Resistance / μH in this package size. Applications include: PDA/****book/desktop/server devices; High current POL converters; Low profile, high current power supplies; Battery powered devices; DC/DC converters in distributed power systems; DC/DC converter for Field Programmable Gate Array (FPGA)
Spec
- Quantity：1piece
- Inductance : 3.3 μH
- Maximum DC Current : 18A
- Package/Case : 5050
- Length : 13.2mm
- Depth : 12.9mm
- Height : 6.5mm
- Dimensions : 13.2 x 12.9 x 6.5mm
- Shielded : Yes
- Tolerance : ±20%
- Maximum DC Resistance : 6.8mΩ
- Series : IHLP
- Core Material : Metal Composite
- Maximum Self Resonant Frequency : 5MHz
- Minimum Operating Temperature : -55°C
- CODE No.:748-7441
