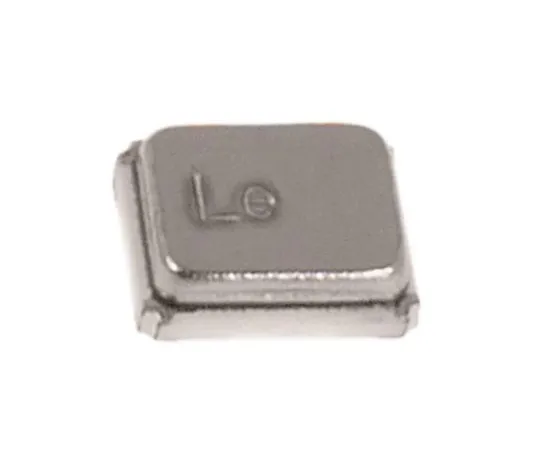

63-5051-20 Murata 25MHz Crystal ±30ppm SMD 4-Pin 2 x 1.6 x 0.7mm XRCGB25M000F3M00R0
Product Description
Product Model: 63-5051-20Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5051-20
Product Brand: Murata
Features
- XRCGB SMT Crystal Resonators. The Murata XCRGB Series are tiny (2.0mm x 1.6mm x 0.7mm), RoHS compliant hybrid crystal resonators with four connection pads on the base allowing there *** on existing 3225 and 2520 board layouts and are available in frequencies ranging from 24 to 48MHz. Typical applications for these XRCGB crystal resonators include PCs, visual equipment and small portable equipment.
Spec
- Quantity：1bag(10pieces)
- Standard Frequency : 25MHz
- Mounting Type : Surface Mount
- Load Capacitance : 6pF
- Package Type : SMD
- Pin Count : 4
- Length : 2mm
- Width : 1.6mm
- Height : 0.7mm
- Dimensions : 2 x 1.6 x 0.7mm
- Frequency Tolerance : ±30ppm
- Frequency Stability : ±40ppm
- Series Resistance : 150Ω
- Minimum Operating Temperature : -30 °C
- Maximum Operating Temperature : +85 °C
- CODE No.:747-4940
