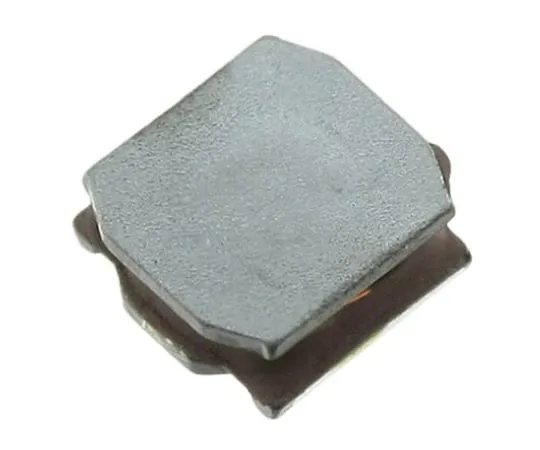

63-5051-14 Murata LQH44P_P0 Series Type 1515 Shielded Wire-wound SMD Inductor 1 μH ±30% Wire-Wound 2.95A Idc LQH44PN1R0NP0L
Product Description
Product Model: 63-5051-14Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5051-14
Product Brand: Murata
Features
- Murata 1515 LQH44P_P0 Series Magnetically Shielded Wire Wound Chokes. LQH44P series miniature shielded inductors with low DC resistance, high current capacity, and high impedance characteristics. The LQH44P series are suitable for *** as inductors or chokes in DC power supply circuits.
Spec
- Quantity：1bag(10pieces)
- Inductance : 1 μH
- Maximum DC Current : 2.95A
- Package/Case : 1515
- Length : 4mm
- Depth : 3.5mm
- Height : 1.65mm
- Dimensions : 4 x 3.5 x 1.65mm
- Shielded : Yes
- Tolerance : ±30%
- Maximum DC Resistance : 30mΩ
- Series : LQH44P_P0
- Maximum Self Resonant Frequency : 90MHz
- Minimum Operating Temperature : -40°C
- CODE No.:747-4859
