Features

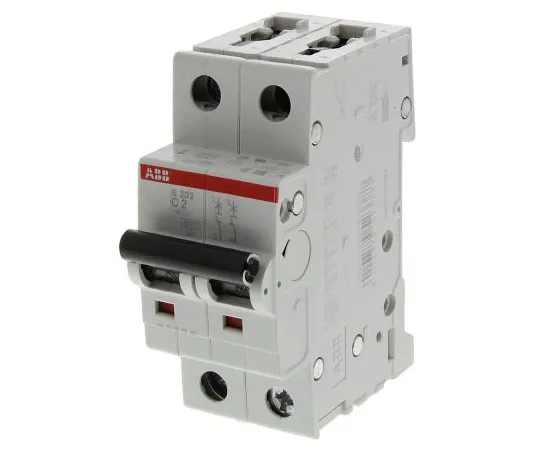

• The Classic ; System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically RS stock no. 539-1553. ABB System Pro M Double Pole 6 kA Type C. ABB System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electro mechanic tripping mechanism for short circuit protection. All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the *** for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space. Features and Benefits. Extra-wide and complete range of MCBs to cover most applications and markets Space and time saving thanks to the unique bottom-fixing auxiliary contact Meeting worldwide standards For domestic or small commercial installations up to 6 kA breaking capacity IEC/EN 60898-1, IEC/EN 60947-2 A wide range of accessories is available!. Standards. IEC 60898 - Relates to Low Voltage Circuit Breakers for *** in ho***hold and similar Installations. In the UK traditionally known as miniature circuit breakers (MCB ‘s). IEC 60947-2 Relates to Low Voltage Circuit Breakers for *** in industrial and similar Installations. In the UK traditionally known as moulded case circuit breakers (MCCB ‘s) and also air circuit breakers (ACB ‘s). Q: What is Tripping Curve C?. A: Curve C: Tripping: 5 to 10 times the rated current Applications: protection of circuits and general applications
