Features

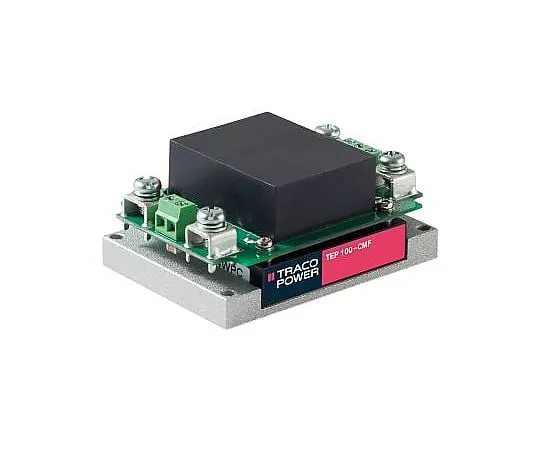

• UL 60950-1, IEC 60950-1, EN 60950-1. MTBF to MIL-HDBK-217F (25°C) Derate above 60°C An optional DIN rail mounting kit is available - see stock number ; 745-1102 745-1102. 3. Traco 100W Single Output Regulated Isolated DC-DC Converter with Chassis Mount Adaptor and EMI Filter - TEP-100 Series. 100W single output regulated isolated high performance dc-dc converters in a rugged, sealed metal case and supplied with a chassis mount adaptor with an EMI filter. These isolated dc-dc converters have a high efficiency allowing an operating temperature up to +60°C with natural convection cooling without power derating, output voltage trimming and remote On/Off. Ideal applications for these single output regulated isolated high performance dc-dc converter modules include industrial applications where PCB mounting is not possible. Wide 2:1 input voltage range Chassis mount converter with screw terminal connections Soft start Remote On/Off Output current limitation Input protection filter Under voltage lockout Reverse input voltage protection Over temperature, over voltage and short circuit protection
