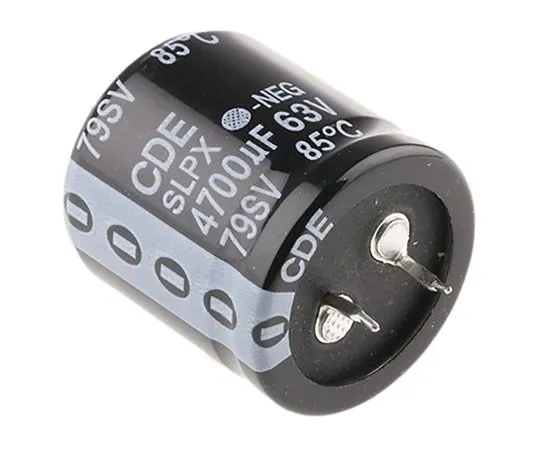

63-5048-74 Cornell-Dubilier 4700μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 30 (Dia.) x 30mm +85°C 30mm 10mm SLPX472M063E3P3
model:
63-5048-74
brand:
Cornell-Dubilier
Product Description
Product Model: 63-5048-74Product Brand: Cornell-Dubilie […]
Contact Us
Product Details
Product Model: 63-5048-74
Product Brand: Cornell-Dubilier
Features
- Cornell-Dubilier SLPX Series. Cornell-Dubilier SLPX series snap-In aluminium electrolytic capacitors are general purpose small cased capacitors that offer high ripple current and wide temperature range. The SLPX series is designed for DC filtering and power supply applications where long life and high ripple capability are needed. Features and Benefits: 3000 h ripple load life at rated voltage Small case size with high capacitance Suitable for switching power supplies 10 mm lead spacing High ripple current Cost effective 22 mm to 35 mm diameter
Spec
- Quantity：1piece
- Capacitance : 4700µF
- Voltage : 63V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 30 (Dia.) x 30mm
- Height : 30mm
- Minimum Operating Temperature : -40°C
- Diameter : 30mm
- Maximum Operating Temperature : +85°C
- Lead Pitch : 10mm
- Series : SLPX
- Leakage Current : <:3√CV μA @ 5 min
- CODE No.:744-1174
