63-5048-53 Bourns SRN8040 Series Type 8040 Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% Wire-Wound 1.5A Idc SRN8040-470M
Electronic/Electrical Parts and Controll Equipments

63-5048-53 Bourns SRN8040 Series Type 8040 Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% Wire-Wound 1.5A Idc SRN8040-470M

model: 63-5048-53
brand: Bourns

Product Description

Product Model: 63-5048-53Product Brand: Bourns Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5048-53
Product Brand: Bourns

Features

  • AEC-Q200. SRN8040 Series Semi Magnetically Shielded Wire Wound Chokes. Bourns SRN8040 series SMD semi-shielded power inductors feature an inductance range of 0.5 to 330uH and a rated current up to 12A, operating temperature of -55°C to +125°C. These inductors are suitable for the automotive industry and are AEC-Q200 qualified. Applications. Automotive systems: Driver assistant, information, lighting, entertainment DC-DC convertors Power supplies Televisions Digital video

Spec

  • Quantity:1bag(10pieces)
  • Inductance : 47 μH
  • Maximum DC Current : 1.5A
  • Package/Case : 8040
  • Length : 8mm
  • Depth : 8mm
  • Height : 4mm
  • Dimensions : 8 x 8 x 4mm
  • Shielded : Yes
  • Tolerance : ±20%
  • Maximum DC Resistance : 190mΩ
  • Series : SRN8040
  • Core Material : Ferrite
  • Maximum Operating Temperature : +105°C
  • CODE No.:743-5185

Related product recommendations

You may also be interested in the following products

63-4724-96 18V ac 2 Output Through Hole PCB Transformer, 30VA FL 30/18
Electronic/Electrical Parts and Controll Equipments
63-7418-80 Tesa Tesa 4120 White Packing Tape 66m x 50mm 04120-00022-00
Electronic/Electrical Parts and Controll Equipments
63-4783-81 RS PRO 4 wire PT100 Sensor, -50°C min +500°C max, 150mm Probe Length x 6mm Probe Diameter 397-1337
Electronic/Electrical Parts and Controll Equipments

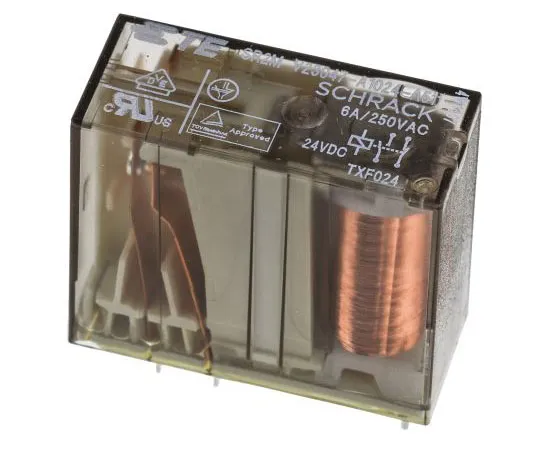

63-7678-10 TE ConnectivitySR2M DPST Non-Latching Relay PCB Mount, 24V dc Coil, 6A V23047-A1024-A511 1-1393258-7
