Electronic/Electrical Parts and Controll Equipments

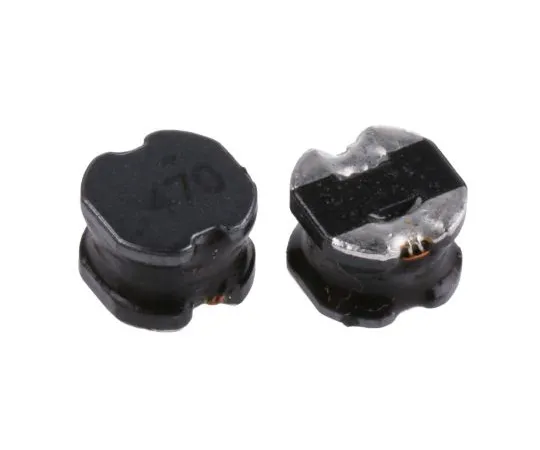

63-5048-49 Bourns SRN6045 Series Type 6045 Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% Wire-Wound 1.3A Idc SRN6045-470M
Product Description
Product Model: 63-5048-49Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-5048-49
Product Brand: Bourns
Features
- SRN6045 Series Semi Magnetically Shielded Wire Wound Chokes. Bourns SRN6045 Series SMD Semi-shielded Power Inductors feature inductance range 1-220uH and rated current up to 8A. Suitable for the automotive industry as these inductors are AEC-Q200 qualified. Applications. Automotive systems: Driver assistant, information, lighting, entertainment DC-DC convertors Power supplies Televisions Digital video
Spec
- Quantity：1bag(10pieces)
- Inductance : 47 μH
- Maximum DC Current : 1.3A
- Package/Case : 6045
- Length : 6mm
- Depth : 6mm
- Height : 4.5mm
- Dimensions : 6 x 6 x 4.5mm
- Shielded : Yes
- Tolerance : ±20%
- Maximum DC Resistance : 257mΩ
- Series : SRN6045
- Core Material : Ferrite
- Minimum Operating Temperature : -40°C
- CODE No.:743-5131
