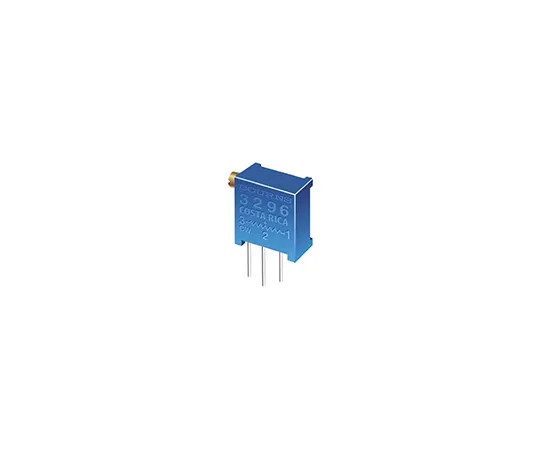

63-5048-19 10kΩ Through Hole Trimmer Potentiometer 0.5W Side Adjust Bourns 3296 Series 3296Z-1-103LF
Product Description
Product Model: 63-5048-19Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-5048-19
Product Brand: Bourns
Features
- Side Adjust 3296Z Series. Bourns® 3296Z 3/8" Square Multiturn Cermet Trimming Potentiometer (Trimpot®). Slim body profile - higher packing density Sealed to withstand immersion board washing Moulded body with built-in stand-offs Large screw slot for easier adjustment Wiper idles at *** travel Slim body profile-higher packing density Sealed to withstand immersion board washing Flame retardant plastic housing Double chevron shaft seal Moulded body with built in stand offs IC style pins for PCB assembly Precious metal wiper for set point stability
Spec
- Quantity：1piece
- Maximum Resistance : 10kΩ
- Mounting Type : Through Hole
- Number of Turns : 25
- Orientation : Side Adjust
- Power Rating : 0.5W
- Series : 3296
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 9.53mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +150°C
- CODE No.:743-2344
