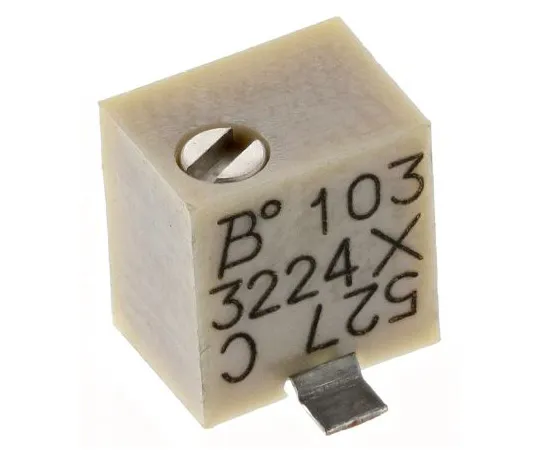

63-5048-15 10kΩ SMD Trimmer Potentiometer 0.25W Top Adjust Bourns 3224 Series 3224X-1-103E
Product Description
Product Model: 63-5048-15Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-5048-15
Product Brand: Bourns
Features
- 12-Turn 250mW 4mm 3224X Series Top Adjust. Bourns Standard 3224X Series top adjust SMD Trimpot® trimming potentiometer with a power rating @ 70 °C of 0.25W. The 3224X series cermet trimmer features a flush adjustment screw, a pick and place centring design for automated placement compatibility and is Sealed to withstand standard board wash processing. Miniature (nominal 4mm square case size) Excellent mounting efficiency Suitable for flow/reflow soldering/hand solder Meets standard EIA and EIAJ footprint Low CRV - 1%
Spec
- Quantity：1piece
- Maximum Resistance : 10kΩ
- Mounting Type : Surface Mount
- Number of Turns : 12
- Orientation : Top Adjust
- Power Rating : 0.25W
- Series : 3224
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 3.5mm
- Minimum Operating Temperature : -65°C
- Maximum Operating Temperature : +150°C
- CODE No.:743-2306
