Analyzer, Testing Equipment

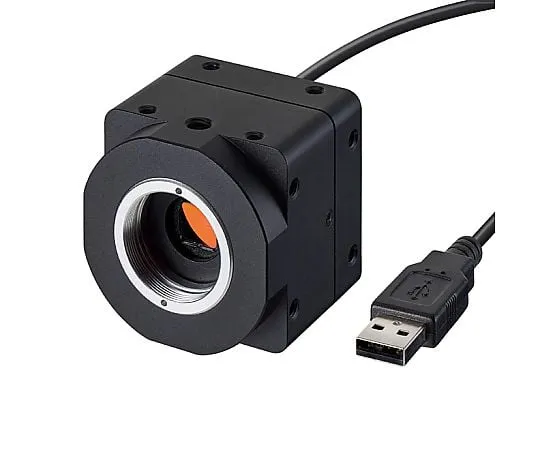

63-2744-44 USB camera (infrared specification) L-834
Product Description
Product Model: 63-2744-44Product Brand: HOZAN TOOL INDU […]
Contact Us
Product Details
Product Model: 63-2744-44
Product Brand: HOZAN TOOL INDUSTRIAL CO., LTD.
Features
- 5 million Pixel USB Camera for Infrared • USB Camera L-836 is an infrared-only model. Only the near-infrared region can be observed.
- When ***d in conjunction with the infrared ring illumination L-709, it enables inspection of scratches, scratches and foreign matter on colored surfaces that are difficult to observe in the normal visible light range, and observation of film and liquid transmission.
- * L-709 is required for ***.
- * The effect may not be obtained dep***ing on the object.
- * You need separate software to *** the machine.
Spec
- Power Consumption: 0.35 W
- power supply - DC5V (USB)
- Cord length: 1.8 m
- external dimensions : 50 ( W ) × 50 ( H ) × 48 ( D ) mm (Without protrusion)
- Quantity : 1 piece
- Image sensor: 1/2. 5 "CMOS image sensor
- Lens mount: C mount
- Frame rate: up to 30 fps with chisel 10 fps when using 5.0 Mega-pixel
- System Requirements
- OS: Windows 10/8/7/XP * 1 (32 bit and 64 bit)
- CPU: Intel Core 2 Duo 1.6 GHz or faster
- Memory: 1 GB or more
- Hard drive: 20 GB or more of free capacity
- USB port (USB 2.0)
- Software: HOZAN USB cam software (Language: Japanese/English/Chinese)
- Basic functions: Preview, shooting still images and movies
- Display functions: digital zoom, image rotation, image inversion
- Adjust: Exposure, White Balance, Frequency, Gamma, Contrast, Saturation, Sharpness, Brightness, Tint, Backlight Correction
- editing features: painting, trimming, inserting text, inserting lines
- Measure Functionality: Point to Point Distance, Point to Point Distance, Center to Point Distance, Arc Length, Angle, Four Point Angle, Rectangle, Polygon, Circle, Parallel Line Distance
- Recording file formats: still image/JPG/BMP/PNG/PDF, video/AVI
- Number of effective pixels: 2592 × 1944 (5.0 Mega-pixel)
- Number of saved pixels: Still image/2592 × 1944 (5.0 Mega-pixel), Movie image/1280 × 960 (1.2 million pixels)
- Output connector: USB 2.0
- *1 Microsoft Japan does not provide any warranty or support in the event of a problem during *** of the OS for which support has been discontinued.
