Spec

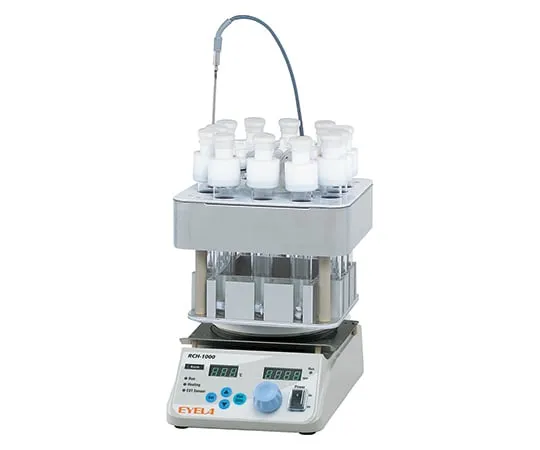

• Ferromagnetic magnetic stirrer system
• Reaction vessel/number: Test tube/1 ~ 12
• Synthetic scale: 3 ~ 15 mL/bottle
• Temperature control range: 50 ~ 160 C * A cooling water circulator is required.
• Speed range: 400 ~ 1200 rpm (water)
• Temperature setting and display: Sheet key setting and digital display
• Stirring setting and display: Volume setting and digital display
• Gas replacement: by vacuum drawing + inert gas introduction
• reflux; reflux block
• Additions of reagents: pipettes, syringes and dropping funnels (with common mating) can be added under inert conditions.
• Reaction observation: by slit of aluminum block
• Safety features: F***, temperature f***, self-diagnostic (upper temperature limiter)
• Wetted Part Material: Glass/Teflon (R), Nitrile Rubber (O-ring)
• Cooling water connection port: outside diameter 10.5 mm hose port
• Test tube dimensions: phi 24 x 150 mm (straight opening)
• Heater: 600 W
• Stirrer Shape: Cross
• Common Mating: TS 15/25
• Operating ambient temperature range: 5 ~ 40 degrees C
• External dimensions: 195 x 280 x 275 mm
• Weight: approximately 9 kg
• Power input/voltage: 6.3 A, 630 VA/AC 100 V 50/60 Hz
• Accessories: Teflon (R) cap/septum (12), three-way cock (2), piping parts (set), test tube (12), aluminum block/cruciform stirrer (12), one-touch nozzle (2), magnetic stirrer/external temperature sensor, heat cut plate
• *A Teflon (R) cap is required for gas replacement.
• Code: 271740
